4. Attach the terminator to the remaining parallel SCSI connector on the back panel of the tape
drive if the library is the last or only device on the parallel SCSI bus. Otherwise, attach one
end of a parallel SCSI cable to the remaining port and the other end to the next device on
the parallel SCSI bus. Make sure the last device on the parallel SCSI bus is properly terminated.
IMPORTANT: For the library and tape drives to operate correctly, each SCSI tape drive must
have a SCSI terminator unless the tape drive is part of a properly terminated chain. This
includes tape drives without an attached SCSI cable.
Connecting the Fibre Channel cables (Fibre Channel devices only)
To connect the Fibre Channel cables to the library:
1. Remove the FC port caps if necessary. Attach one end of the Fibre Channel cable to Port A
on the tape drive as shown in Figure 47 (page 52).

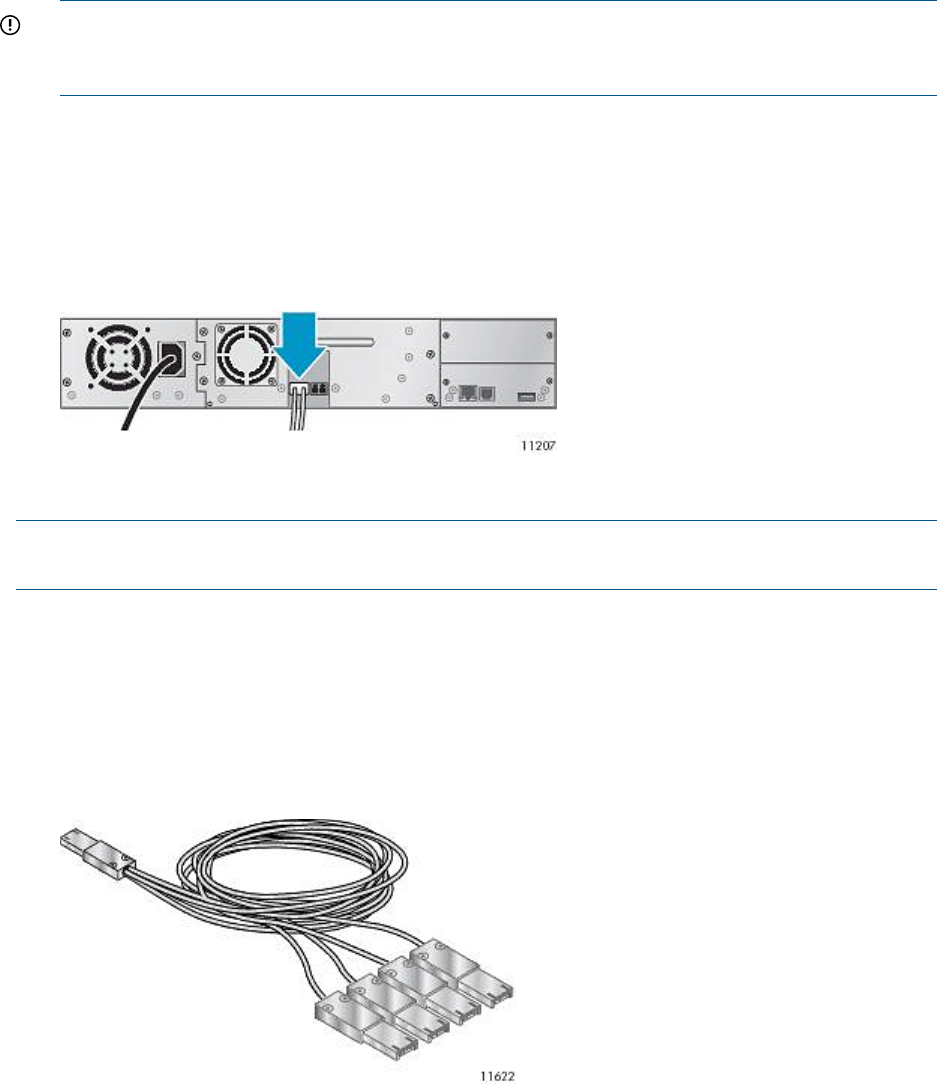

Figure 47 Attaching the Fibre Channel cable
2. Attach the other end of the FC cable to a switch or HBA.
NOTE: It is recommended that you cable Port A only and that you configure Port B for Auto Detect
on Fibre Speed and Port Type.
Connecting the SAS cable (SAS devices only)
To connect the SAS cable to the device:
1. Attach the HBA end of the SAS cable into the connector on the HBA. If you are using a SAS
fanout cable, the end of the cable with only one connector, shown facing backwards in
Figure 48 (page 52), should be plugged into the connector on the HBA.
Figure 48 Example SAS fanout cable
