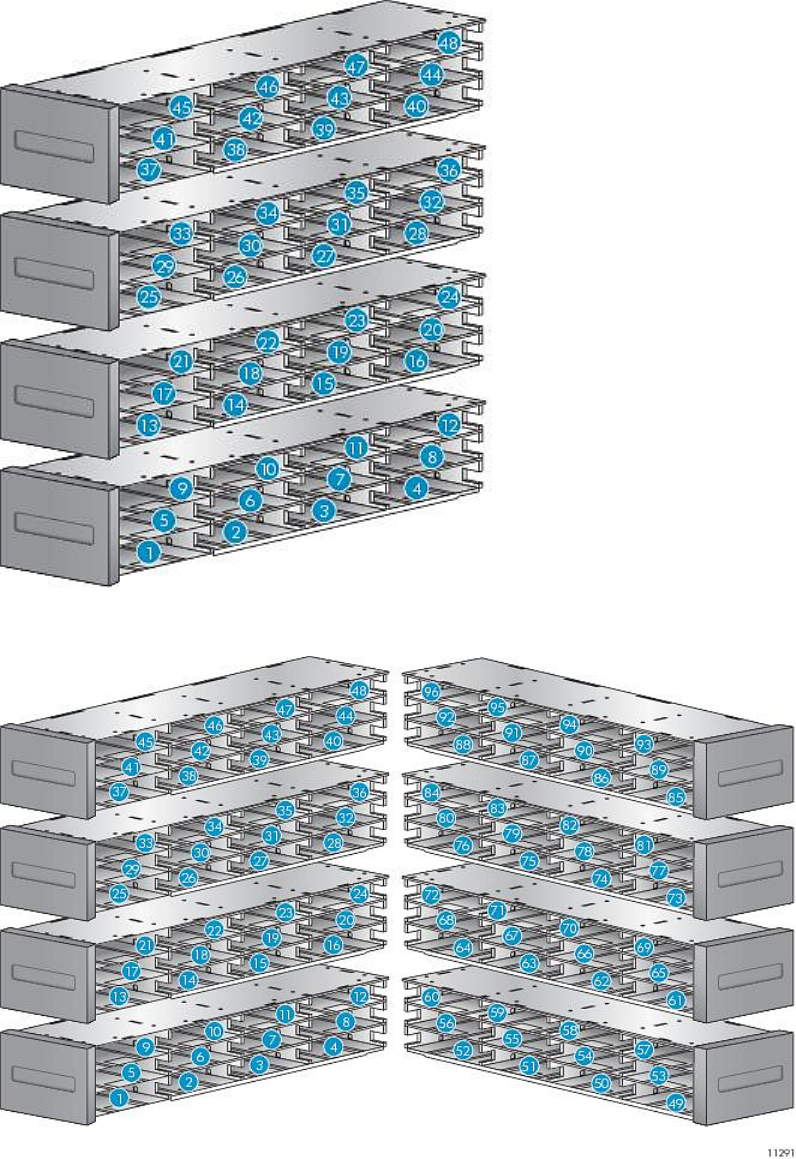

Figure 54 MSL8048 slot numbering with mailslot disabled
Figure 55 MSL8096 slot numbering with mailslots disabled
When the MSL4048 or MSL8048 mailslot, or the MSL8096 lower-left mailslot is enabled, all of
the storage slot numbers are adjusted, as shown in Figure 56 (page 63). The storage slots in the
other magazines are renumbered accordingly.
