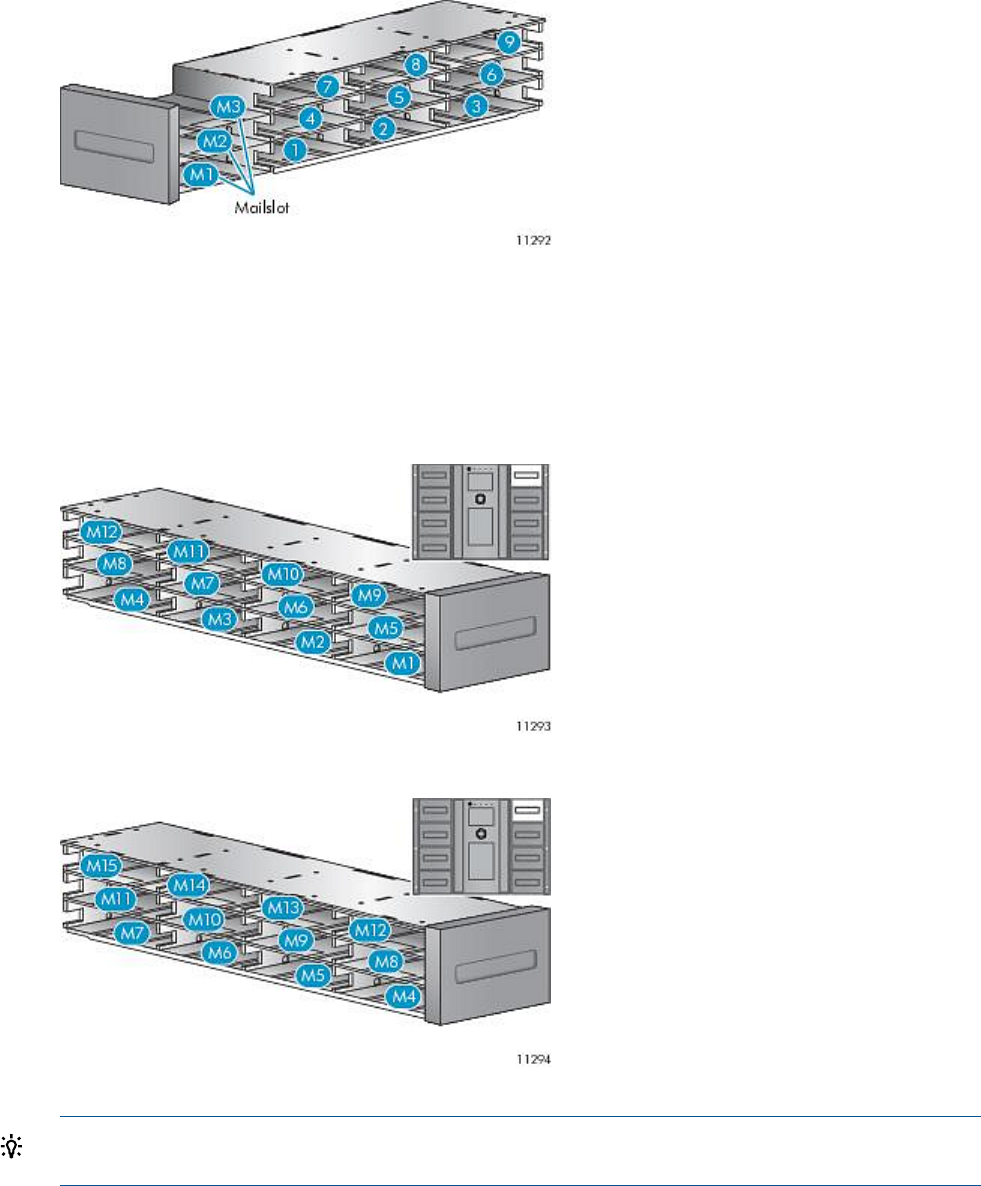

Figure 56 MSL4048, MSL8048, and MSL8096 lower-left magazine slot numbering with mailslot
enabled
On the MSL8096, when the upper-right mailslot is enabled, the numbering of the storage slots in
the other magazines is not affected. Mailslot numbering for the upper-right magazine when just
the upper-right mailslot is enabled is shown in Figure 57 (page 63). When both mailslots are
enabled, the mailslot numbers in the upper-right magazine are adjusted, as shown in
Figure 58 (page 63).
Figure 57 MSL8096 upper-right magazine slot numbering with only the upper-right mailslot enabled
Figure 58 MSL8096 upper-right magazine slot numbering with both mailslots enabled
TIP: For the slot numbering for your library in its current configuration, see the RMI's Status:
Inventory page (page 78).
