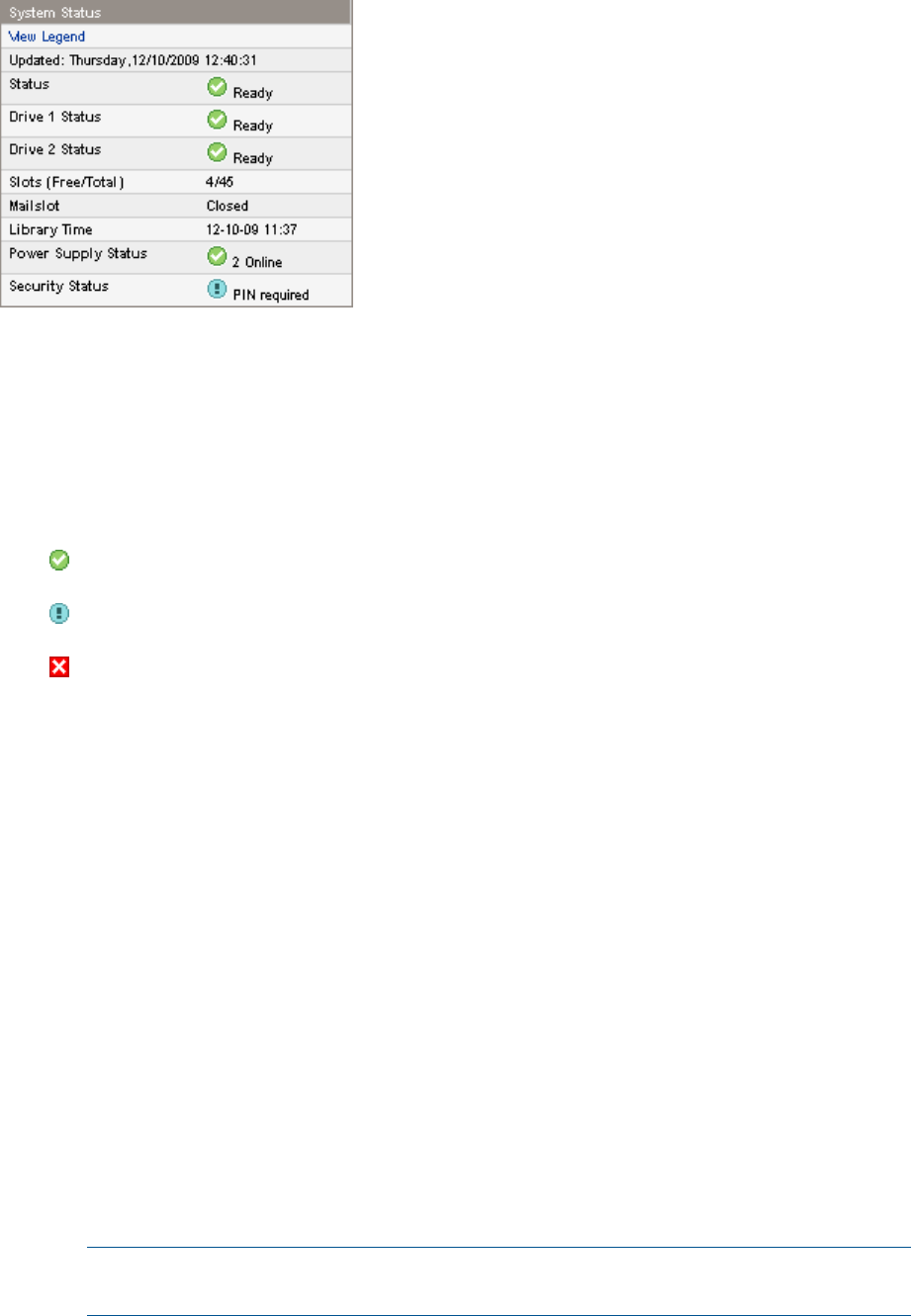

Figure 60 System Status pane
The System Status pane displays the following:
• Updated — the day, date, and time of the most recent status view. This timestamp comes from
your computer and may be different from the library Time at the bottom of the pane. Click
your browser's reload button to refresh the system status.
• Library Name — the name of the device, which was set in the Configuration: System screen.
• Status of the library and tape drives
The green Status Ok icon indicates that the device is fully operational and that no user intervention is
required.
The blue exclamation point Status Warning icon indicates that user attentionis necessary, but that the
device can still perform most operations.
The red X Status Error icon indicates that user intervention is required and that the device is not capable
of performing some operations.
• Slots (Free/Total) — Free is the number of empty storage slots. Total is the number of storage
slots available to the host software, which does NOT include reserved slots.
• Mailslot — shows whether the mailslot is open, closed, or disabled.
• Library Time — the date and time from the library, which can be set from the OCP or RMI.
The library Time is updated when the system status is refreshed. The time of the most recent
refresh is the Updated time at the top of the pane. If you call HP Service to request a temporary
administrator password, refresh the system status with your browser reload button and then
give the service engineer this library Time.
• Power Supply Status (MSL4048, MSL8048, and MSL8096)
MSL4048 — Online — The power supply is installed.◦
◦ MSL8048 and MSL8096 — Good — The power supply is functioning correctly.
◦ MSL8048 and MSL8096 — Functional, fan failure — the power supply is supplying
power to the library, but the fan has failed so the power supply could fail soon. The power
supply should be replaced.
◦ Installed, failed — The power supply installed in the unit is not working and the library
no longer has redundant power. The power supply should be replaced.
NOTE: If the MSL4048 has two power supplies and one fails, after a power cycle the
library will not recognize the failed power supply as installed in the library.
