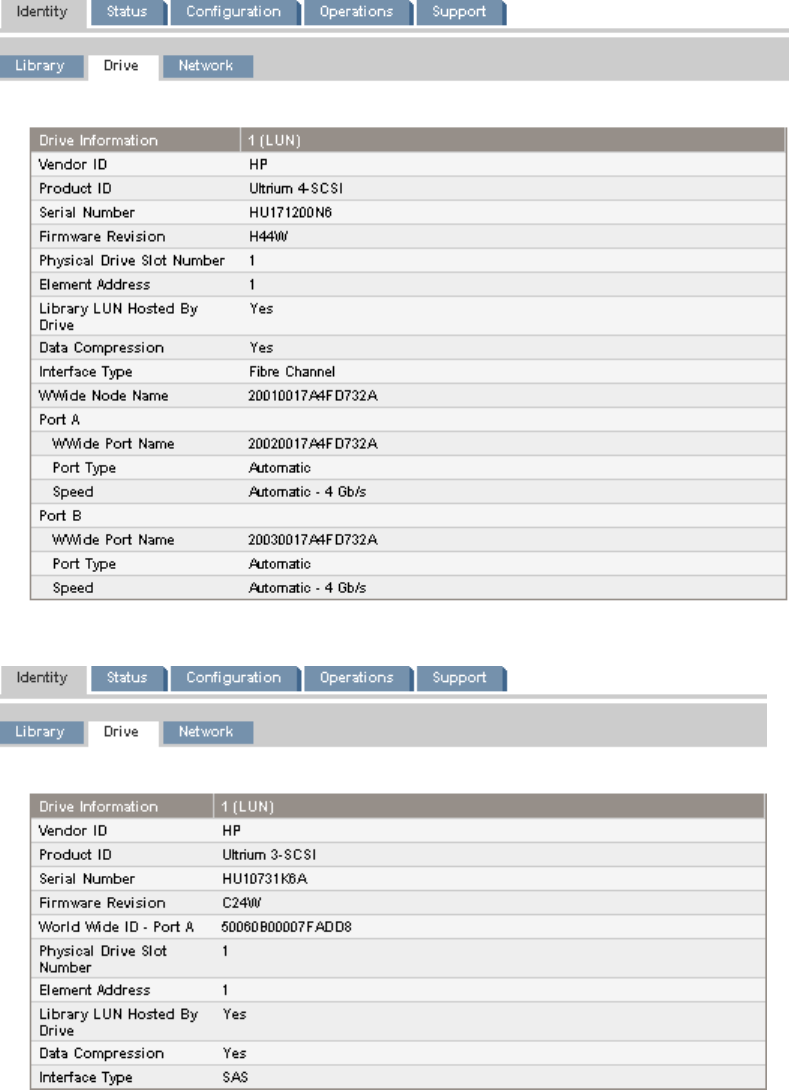

Figure 65 Identity: Drive page (Fibre Channel)
Figure 66 Identity: Drive page (SAS)
You can see, but not modify, the following:
• Vendor ID — will always be HP.
• Product ID — product identification information that is given by the drive.
• Serial Number — electronic serial number of the drive. It should match the physical serial
number of the drive.
• Firmware Revision — version of the currently installed drive firmware.
• SCSI ID (parallel SCSI drive only) — SCSI address of the drive. The LUN for the tape drive is
0. If a drive is removed or powered off, its number will be reserved. If a drive is added between
