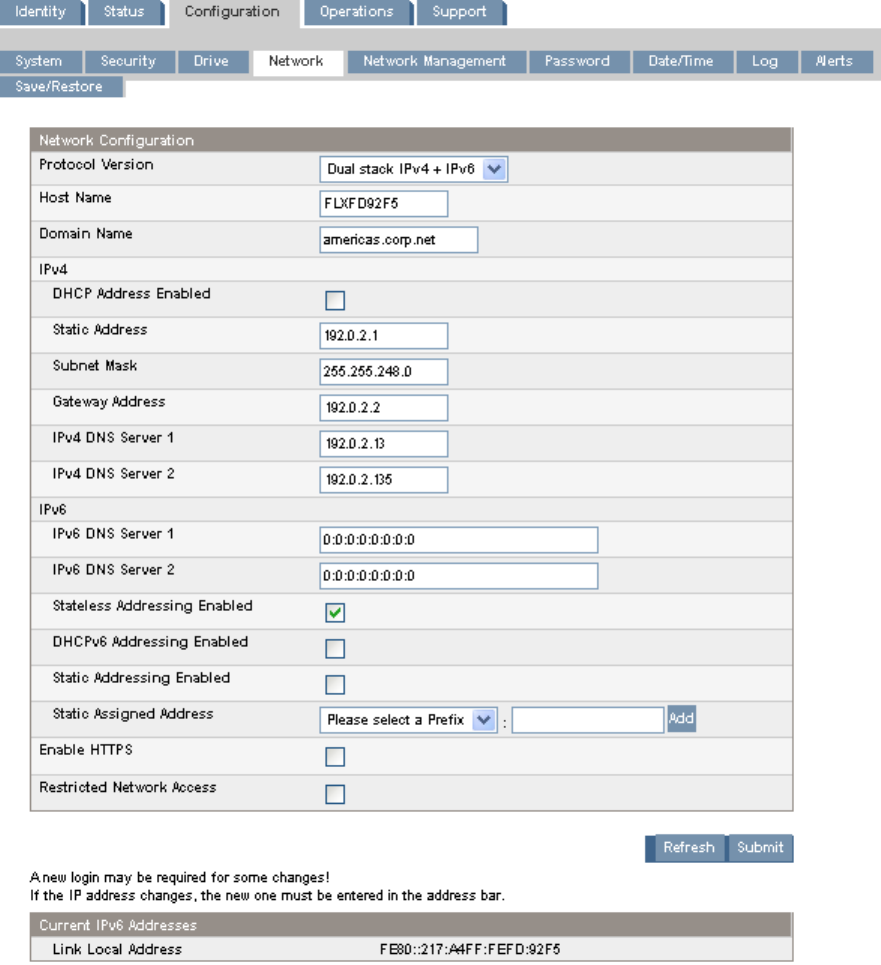

Figure 79 Configuration: Network page
You may change the:
• Protocol version — selects the Internet Protocols that will be enabled. Select IPv4 only, IPv6
only, or both IPv4 and IPv6 protocols. The default is the IPv4 protocol only.
• Host Name — enter the host name provided by your network administrator for the library.
• Domain name — enter the domain name provided by your network administrator for the
library.
• Enable HTTPS — when On, the RMI can only be accessed through an HTTPS connection.
• Restricted Network Access — when On, disables all non-essential network functionality that
is not required for normal product operation. In most circumstances leave this On.
Remote management interface (RMI) 87
