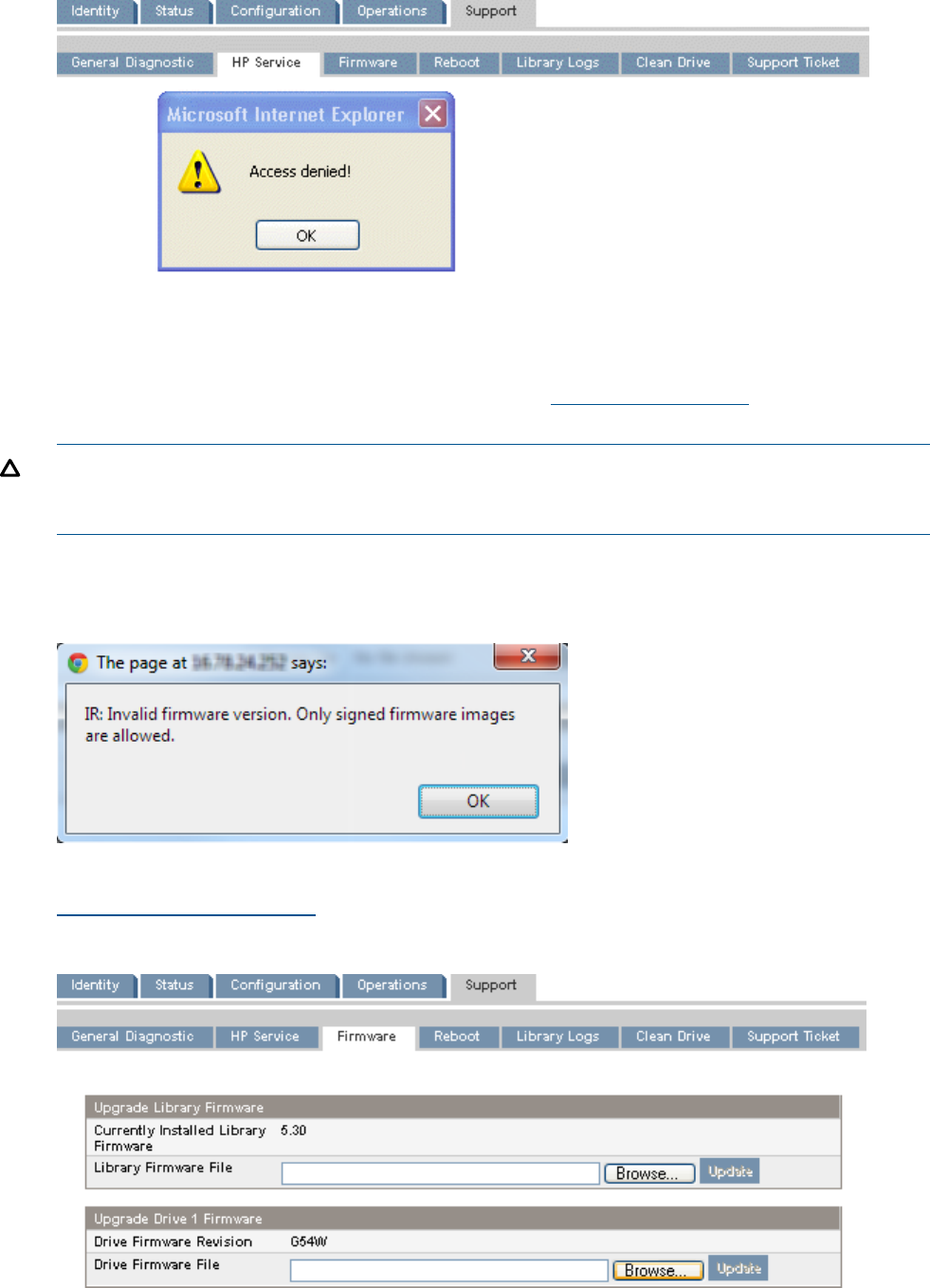

Figure 90 Support: HP Service page
Determining and updating firmware
Use the Support: Firmware page to see the current version of the device and drive firmware, and
upload new firmware. The firmware files must be in the HP L&TT format with the .frm file extension.
You can find firmware files on the HP Support website: www.hp.com/support. After the firmware
is updated, the device or tape drive with updated firmware is reset.
CAUTION: Do not interrupt the device while a firmware update is in progress. Updating the tape
drive firmware can take several minutes because the firmware is transferred through a serial
connection.
The library only supports signed firmware image upgrades and downgrades. Once firmware that
uses code signing is loaded, the firmware will reject all unsigned images. If you attempt to load
an unsigned firmware image, the RMI displays an invalid firmware version error message:
If you see this message, download the latest signed firmware image from the MSL website at:
http://www.hp.com/go/msl
Figure 91 Support: Firmware page
Remote management interface (RMI) 97
