1. Highlight Operations -> Move Media and press OK to select it.

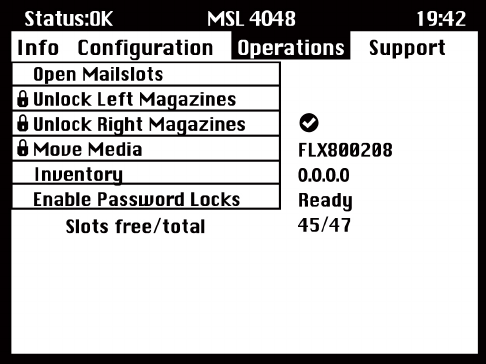

Figure 105 Operations menu
2. Enter the administrator password if prompted.
3. Use the Up and Down arrows to move to the Source Type field and press OK.
4. Use the Up and Down arrows to change the value of the highlighted field. When the highlighted
field shows the desired value, press OK to select.
5. If appropriate, move to the Source field and press OK. Repeat step 4 to specify the source
cartridge.
6. Use the Up and Down arrows to move to the Destination Type field and press OK.
7. Use the Up and Down arrows to change the value of the highlighted field. When the highlighted
field shows the desired value, press OK to select.
8. If appropriate, move to the Destination field and press OK. Repeat step 7 to specify the
cartridge destination
9. Use the Up and Down arrows to move to the <Move> area and press OK to carry out the
operation (or move to the <Cancel> area and press OK to cancel the operation).
The library now moves the tape from the selected source to the selected destination. While
the tape is being moved, the screen displays Moving Tape. Once the tape has been moved,
the screen displays either Move Complete, or Move Failed. If the move failed, press OK to
display the error code and message explaining the failure.
Info menu
The Info menu options provide the following options. None of these options is password protected.
• “Viewing status information (Info > Status)” (page 130)
• “Viewing Library identity information (Info > Identity Library)” (page 131)
• “Viewing drive identity information (Info > Identity Drives)” (page 131)
• “Viewing inventory information (Info > Inventory)” (page 132)
• “Viewing network information (Info > Network)” (page 132)
Viewing status information (Info > Status)
Status information can be displayed for the system, the library, or for a specific drive.
130 Operating the tape library
