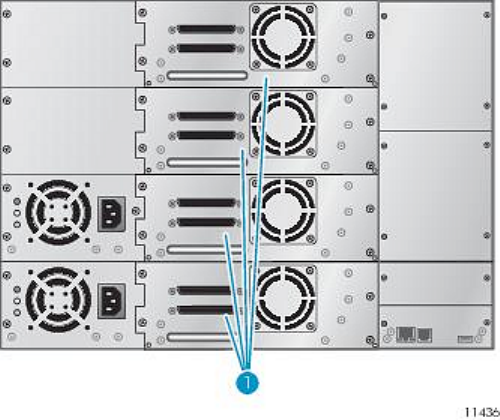

Figure 110 MSL8048 and MSL8096 parallel SCSI tape drive default SCSI addresses
1. Tape drives with SCSI address 4
Depending on other devices attached to the same parallel SCSI bus and their SCSI IDs,
you may need to change the SCSI ID before using the device. Review the manuals for
the other devices on the parallel SCSI bus or your operating system to determine which
SCSI IDs are currently in use. Change the SCSI ID with the OCP (for the MSL2024 see
“Changing the SCSI address — parallel SCSI devices (Configuration> Change Drive)”
(page 110), for the MSL4048, MSL8048, and MSL8096 see “Changing the drive
configuration (Configuration > Drives)” (page 134)) or RMI (see “Changing the drive
configuration” (page 85)).
◦ Verify that all parallel SCSI cables are securely connected on both ends. Check the length
and integrity of your parallel SCSI cabling. Check the parallel SCSI connector for bent
