Site Preparation
Before installing the enclosure, make sure that adequate space is available in
front of the enclosure for opening the front door (10 in/25.4 cm clearance).
See Figure 2–1 for specific space requirements.
D
1
F
a
u
l
t
D
0
PEDESTAL
3000
-2
9
UPS
117 mm
(4.6 in)
163 m
m
(6.4 in)
376 mm
(14.8 in)
203 mm
(8 in)
533 mm
(21 in)
483 mm
(19 in)
AIR FLOW
305 mm
(12 in)
FRONT DOOR
203 mm
(10 in)

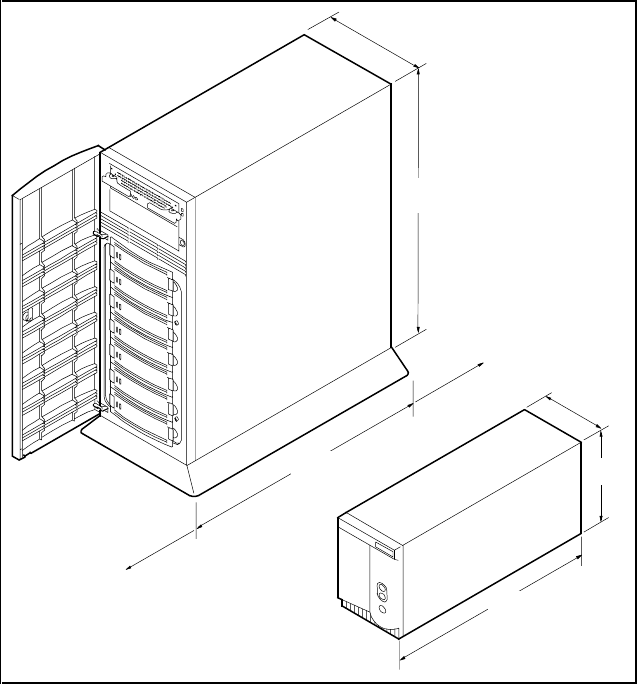

Figure 2-1. Minimum installation clearance measurements
Unpacking the RAID Array 3000
The shipping containers provide maximum protection for the subsystem and
all components. Compaq recommends that you unpack the subsystem in the
installation area.
