Unpacking and Setting Up RAID Array 3000 Pedestal 2-3

Compaq Confidential – Need to Know Required

Writer: Bob Young Project: Getting Starting RAID Array 3000 for Microsoft Windows Installation Guide Comments:

Part Number: AA-RACZD-TE File Name: c-ch2 Unpacking and Setting Up RAID Array 3000 Pedestal.doc Last Saved On: 12/4/00 2:26 PM

NOTE: Before unpacking the equipment, inspect the shipping carton for signs of external

damage. Report any damage to the local carrier and to your sales representative.

See Figure 2–2 and complete the following procedure to unpack the

subsystem:

1. Orient the shipping container as shown.

2. Open the container and remove the subsystem and packing material.

3. Remove the top foam blocks.

4. Remove the door.

5. Remove the UPS from the side compartment.

6. Remove the subsystem.

7. Replace all packing material in the shipping container and store for

future use.

UPS packaged

in separate box

Foam Block

User

Documentation

Door with

Shipping Sleeve

RAID Array

3000 shipped

with Controller

installed

HR-1

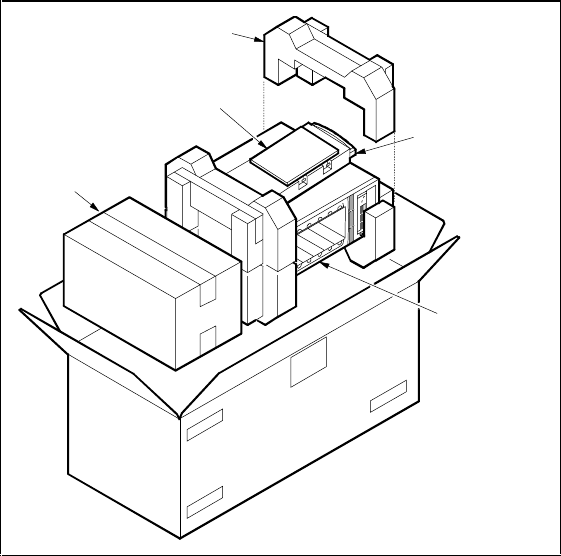

Figure 2-2. Unpacking the RAID Array 3000 Pedestal
