Installing the Door
Install the door on the subsystem as follows:
1. Insert the two pivots on the left inside of the door into the receptacles on
the left front of the enclosure (one just above the SBBs, one just below).
2. Close and latch the door (you can lock it with the key provided).

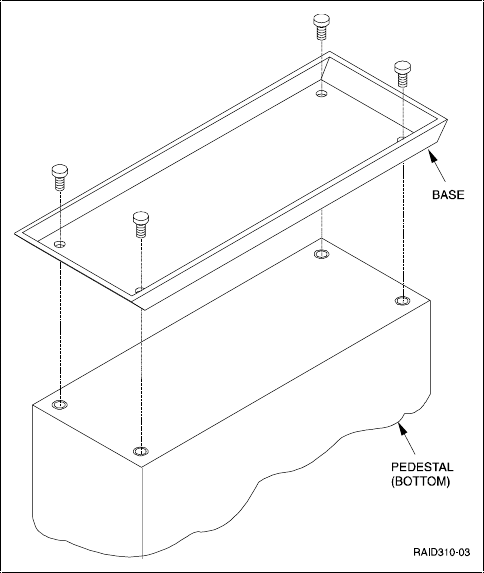

Figure 2-3. Mounting the base
