Installing the Disk SBBs
To install a disk SBB, hold it in both hands, insert it into the guide slots, and
firmly push it into the shelf until the mounting tabs snap in place. Figure 2-4
shows a split-bus configuration and shows the SCSI bus port and ID
assignments in the enclosure.
SLOT 0
SLOT 1
SLOT 2
SLOT 3
SLOT 4
SLOT 5
SLOT 6
ID = 8
Device
Port 0
Device
Port 1
ID = 10
9
10
11
8
9
S
HR-1
0
1
4

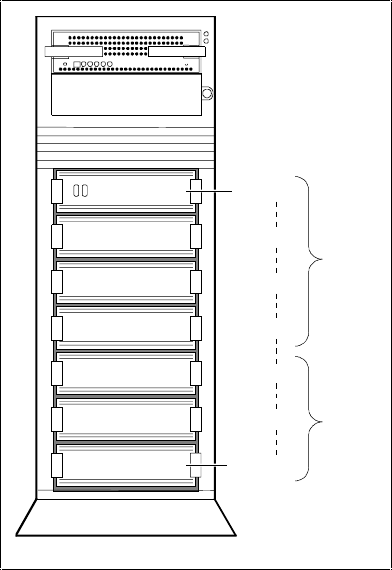

Figure 2-4. StorageWorks SCSI bus port and SCSI ID assignments
