Connecting the SWXA3– BD to the RAID
Array 3000 Subsystem
Connect the SWXA3–BD host adapter to the RAID Array 3000 as follows:
1. Connect the large, thumbscrew-equipped connector on the BN38E–0B
Technology Adapter cable to the SWXA3–BD host adapter connector as
shown in Figure 4–3.
Host Adapter Connector
Connect To
Technology
Adapter Cable
To RAID
Subsystem
Controller
SCSI Cable
BN37A-05
Technology
Adapter Cable
BN38E-0B
SWXA3-02

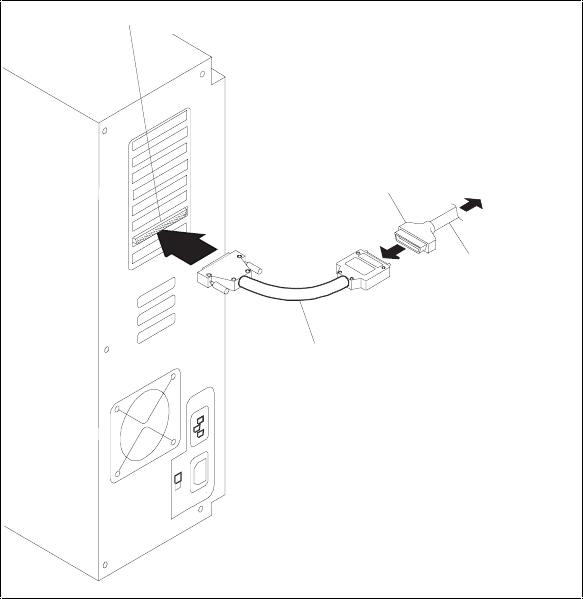

Figure 4-3. Connecting BN38E– 0B technology adapter cable to the host
adapter and to the SCSI cable
2. Connect the small connector on the BN38E–0B Technology Adapter
cable to the connector on one end of the BN37A–05 SCSI cable.
NOTE: Make sure you secure the two connectors with the screws provided.
