7. Click the Serial radio button, the HSZ22 Management: Serial
Connection window appears (Figure 6-11).
8. Select the PC’s COM port (COM1) that the top controller (CTR TOP) is
connected to, then click the Connect button. A second Serial
Connection window appears for connecting the redundant controller.

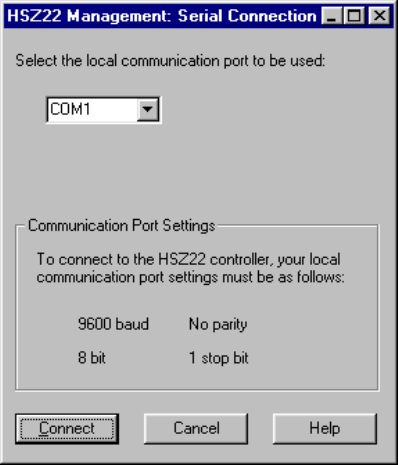

Figure 6-11. HSZ22 management: serial connection (COM1)
