9. When the Serial Connection window appears again (Figure 6-12), select
COM port (COM2) that the second controller (CTR BOTTOM, the
redundant controller) is connected to (Figure 6-10); click Connect to
display the Storage Window for COM1 and COM2, (Figure 6-13).

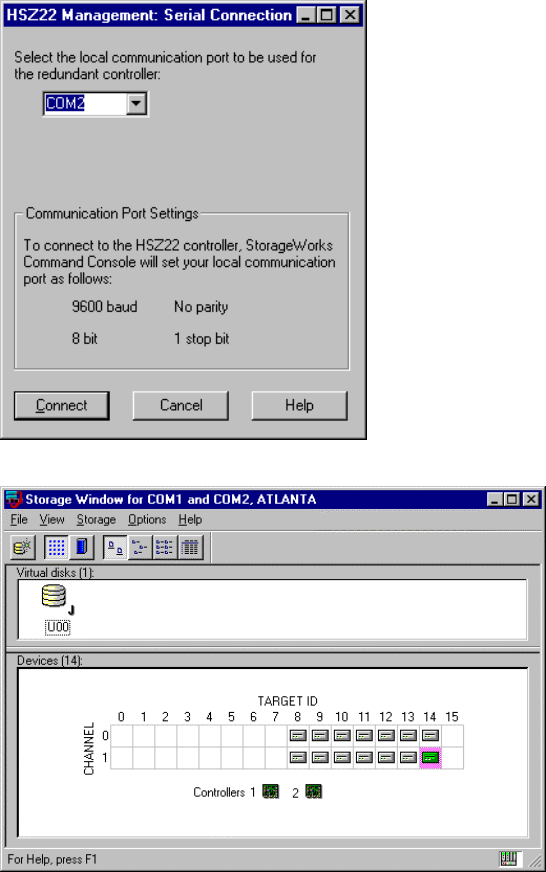

Figure 6-12. HSZ22 management: serial connection (COM2)
Figure 6-13. Storage window for COM1 and COM2
