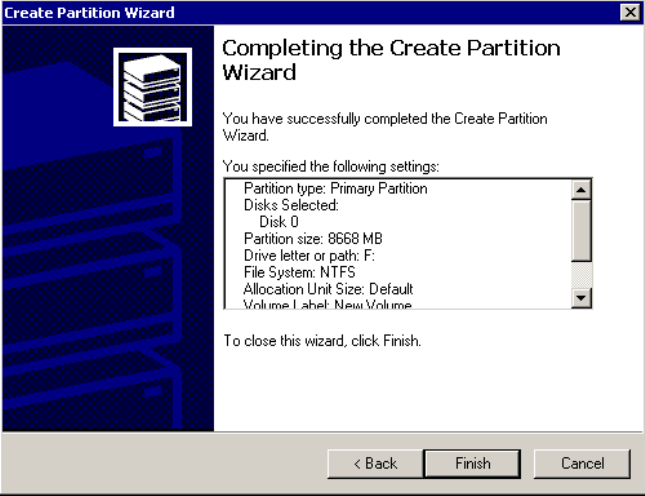

Figure 8-7 shows Completing Create Partition Wizard.
Figure 8-7. Completing the create partition wizard
NOTE: Always document and save your RA3000 RAID set configuration for future
reference. Information on each RAID set and partition — the original LUN number,
controller, and host port parameters — should be readily available if a problem occurs.
Appendix A contains configuration sheets to help you in this process.
