HP Store Once 4900 Backup Maintenance and Service Guide

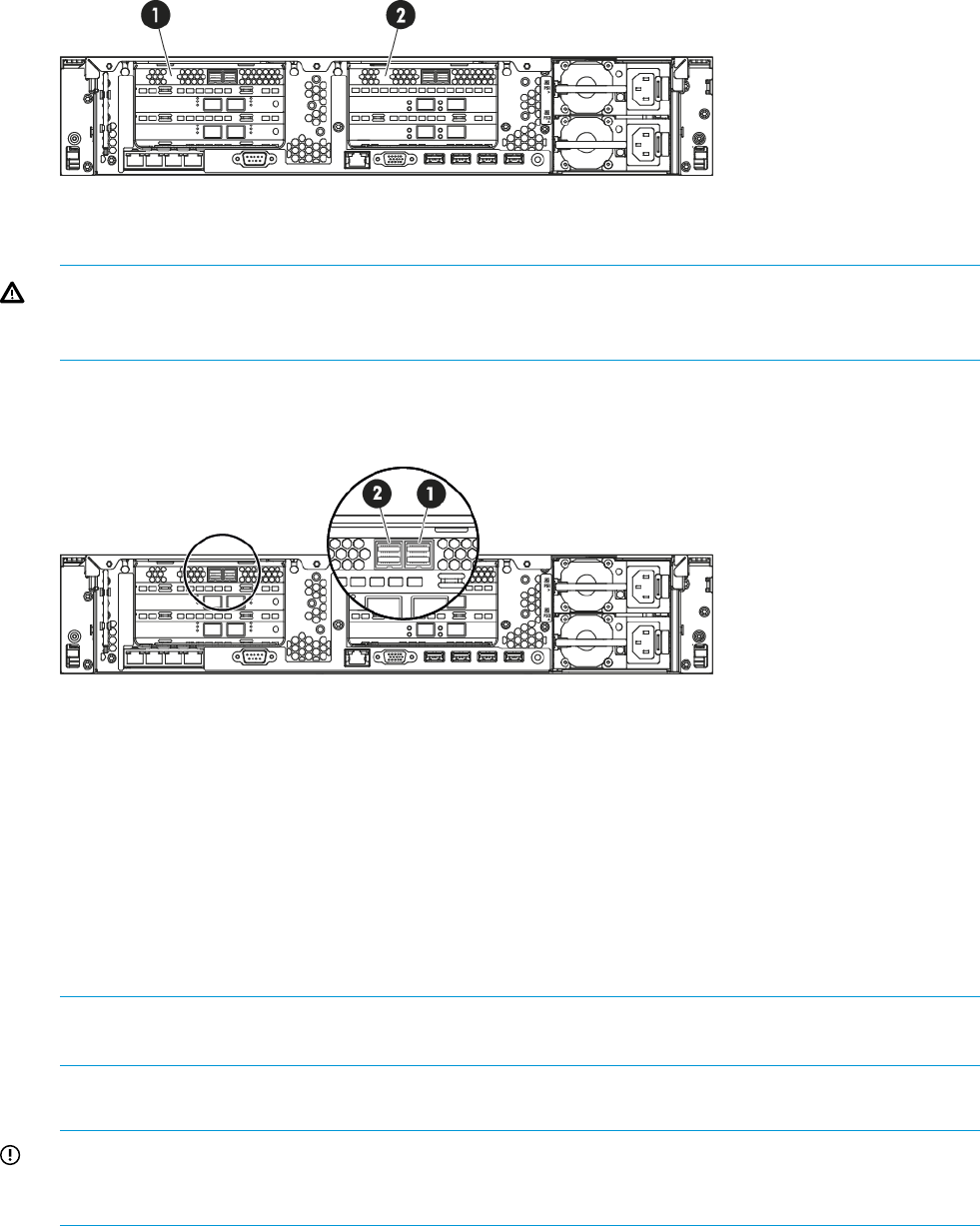

Location of the RAID cards (server rear view)
Figure 5 HP StoreOnce 4900 models, location of the p1228 controllers
RAID controller in PCIe slot 42RAID controller in PCIe slot 11
WARNING! To reduce the risk of personal injury or damage to the equipment, consult the safety
information and user documentation provided with the server and p1228 controller before attempting
the installation.
RAID card ports
Figure 6 Port numbering on the RAID card
Port 2E2.Port 1E1.
Identifying a RAID controller failure
All HP StoreOnce Backup systems boot from a p1228 RAID controller that is also connected to
some or all of the customer data storage disks. If a catastrophic failure of the boot RAID controller
occurs, the system will not boot. This may only be diagnosed from the server POST messages where
the controller may report an error or a lockup code. In these cases contact HP Support and provide
information about the reported error code.
Other forms of non-catastrophic RAID controller failure, or failure of the second RAID controller on
the StoreOnce 4900 Backup, will be reported in the Event Log on the StoreOnce GUI.
NOTE: If RAID fails and the HP StoreOnce Backup System is still functioning, you can also get
information, including license keys, by generating a Support ticket.
Replacing the HP p1228 controller
IMPORTANT: When replacing the p1228 controller be sure to always replace the card into the
same slot from which it was removed. Make sure the card is connected to the SuperCapacitor
module and to the external SAS data storage.
1. Power off the HP StoreOnce Backup system and, observing the safety and antistatic procedures
documented in the HP ProLiant Servers user guides, remove the cover from the HP StoreOnce
Backup system, as described in the appropriate HP ProLiant Maintenance and Service Guide.
Identifying a RAID controller failure 17
