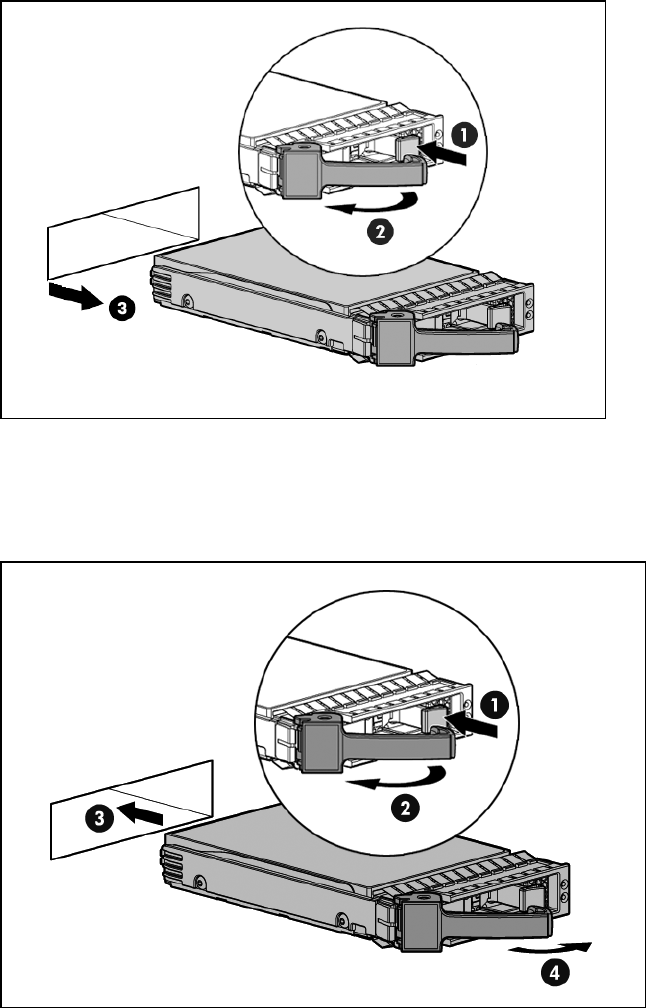

3. Press the button (1) to release the eject lever. Pull out the disk carrier handle (2) and slide the
hard drive assembly (3) out of the drive bay. Be sure to support the drive when pulling it out
of the bay.
Figure 15 Removing the drive
4. Press the button (1) to release the carrier handle (2). Insert the hard drive (3) and close the
carrier handle (4).
Figure 16 Installing the drive
Replacing a hot plug disk in a disk enclosure 29
