HP Store Once 4900 Backup Maintenance and Service Guide
Table Of Contents
- Backup system service and maintenance guide for HP StoreOnce 4900 Backup
- Contents
- 1 Spares part numbers for field replacement
- 2 General information
- 3 Identifying problems
- 4 Replacing the system motherboard
- 5 The HP p1228 RAID controller
- 6 RAID cache module and SuperCapacitor failures
- 7 Disk enclosures
- 8 Disk replacement
- 9 The QR ISO image
- 10 Support and other resources
- 11 Documentation feedback
Table 1 HP StoreOnce 4900 head server spares part numbers (continued)
Part numberDescriptionPart
455885–001ASSY, 10Gb SR SFP+10Gb Ethernet SFP+
615406–001HP NC552SFP Dual Port 10GbE Server Adapter10 GbE card (two per system)

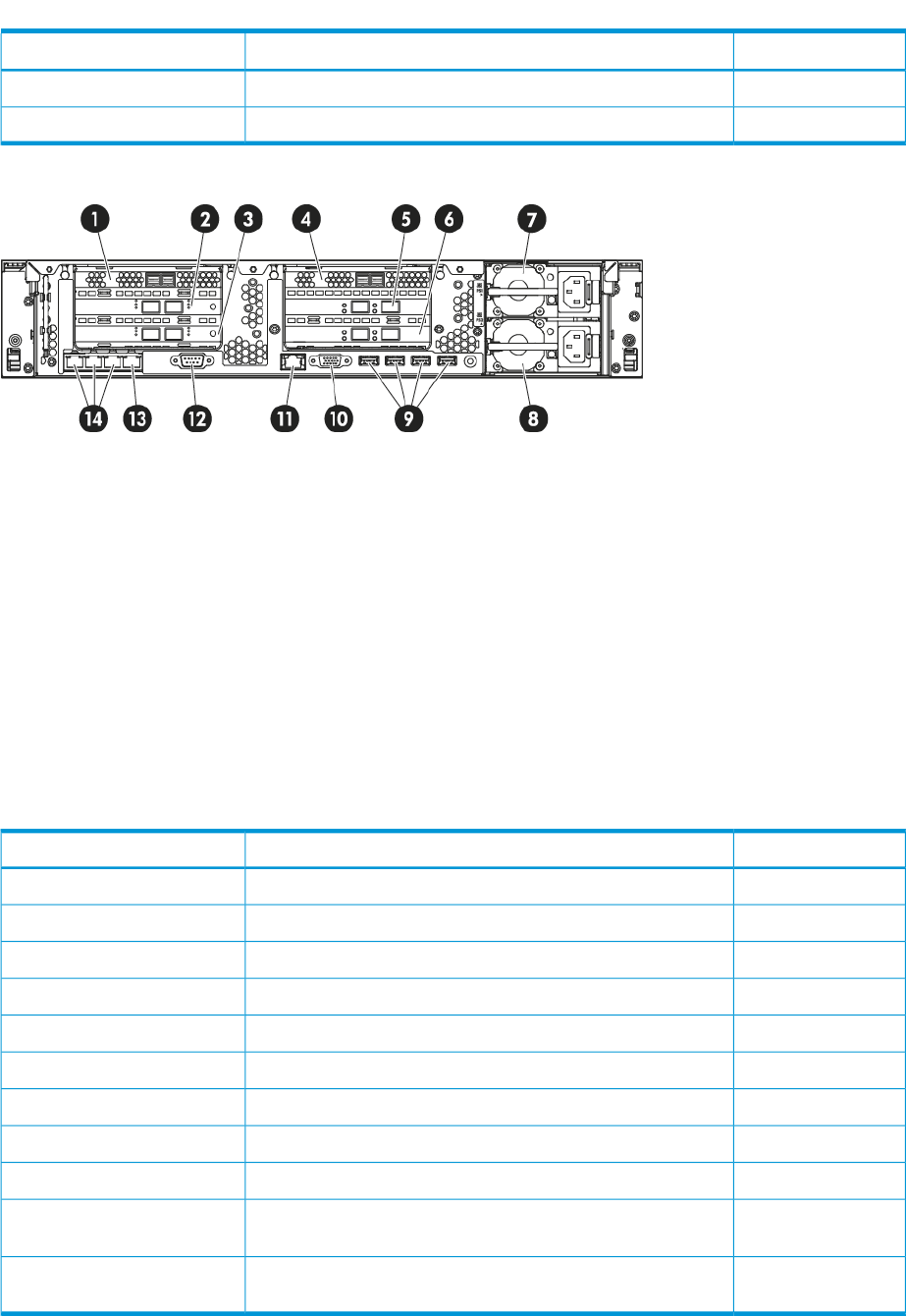

Figure 1 Rear view of the head server
FC card 12.RAID card 11.
RAID card 24.FC card 23.
10GbE card 26.10GbE card 15.
Power supply 28.Power supply 17.
Video/monitor port10.USB ports9.
Serial connector12.iLO4 Management port (do not use for data
connection)
11.
1GbE network ports 2, 3 and 414.1GbE network port 1 (used with Quick Install
option)
13.
HP StoreOnce 4900 disk enclosure
Table 2 Spares part numbers for the disk enclosure
Part numberDescriptionPart
142258-004SPS-CORD AC PWR IEC RT APower cord
389015-001SPS-BLANK HD SLIMLN INTRHard disk blank
663681-001SPS-BEZEL EAR RIGHT D6000Right bezel ear
579229-001SPS-POWER SUPPLY 1200W PPower supply
663679-001SPS-BD D6000 SAS IO MODULEIO module
712430-001SPS-CHASSIS D6000 LCDLCD
413996-001SPS-FAN SYSTEMFan
689128-001SPS-ASSY D6000 POWER BLOCK w/POWERPower block
743405-001SPS-DRV HD 4TB 6G 7.2K 3.5 SAS MDL4 TB Hard disk
717429-001SPS-CA EXT HYB MSAS HD TO MSASExternal SAS cable, server to
disk enclosure
408765-001SPS-CA,EXT MINI SAS, 0.5MExternal SAS cable, between
drawers on disk enclosure
6 Spares part numbers for field replacement
