UPS R12000 XR Models Maintenance and Service Guide

Illustrated Spare Parts List
2-4 HP UPS R12000 XR Models Maintenance and Service Guide
UPS Exploded View of Spare Parts (Rear)
3
2
1
2
2
1
1

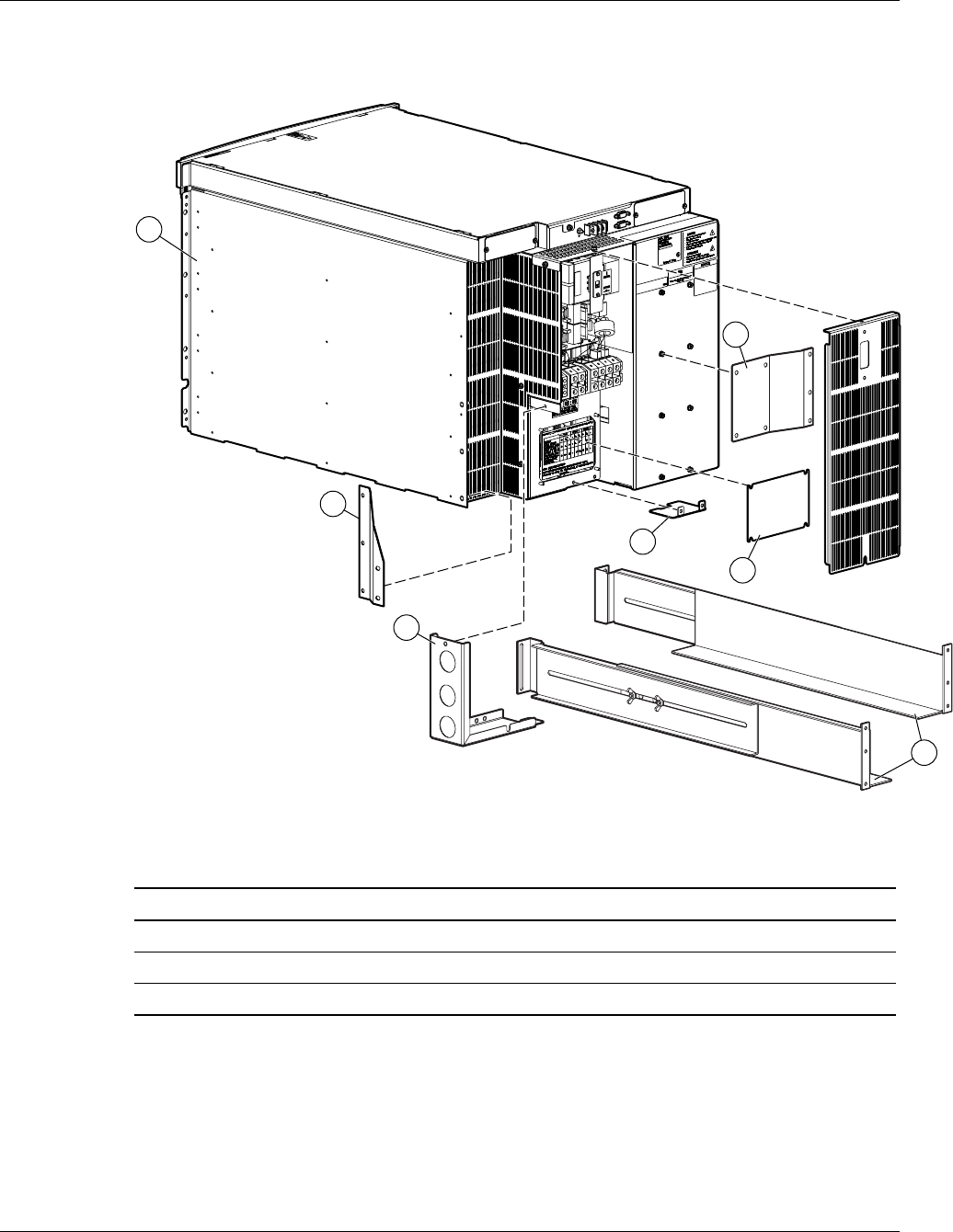

Figure 2-2: UPS exploded rear view
Table 2-2: UPS Spare Parts List (rear)
Reference Description Spare Part #
1 SPS-HRDW, MOUNT, UPS, 12 KVA 228292-001
2 SPS-PANEL, UPS, ERM, W/HRDW 252048-001
3 SPS-CHASSIS, UPS, 12 KVA 228285-001
