UPS R12000 XR Models Maintenance and Service Guide

Illustrated Spare Parts List
HP UPS R12000 XR Models Maintenance and Service Guide 2-5

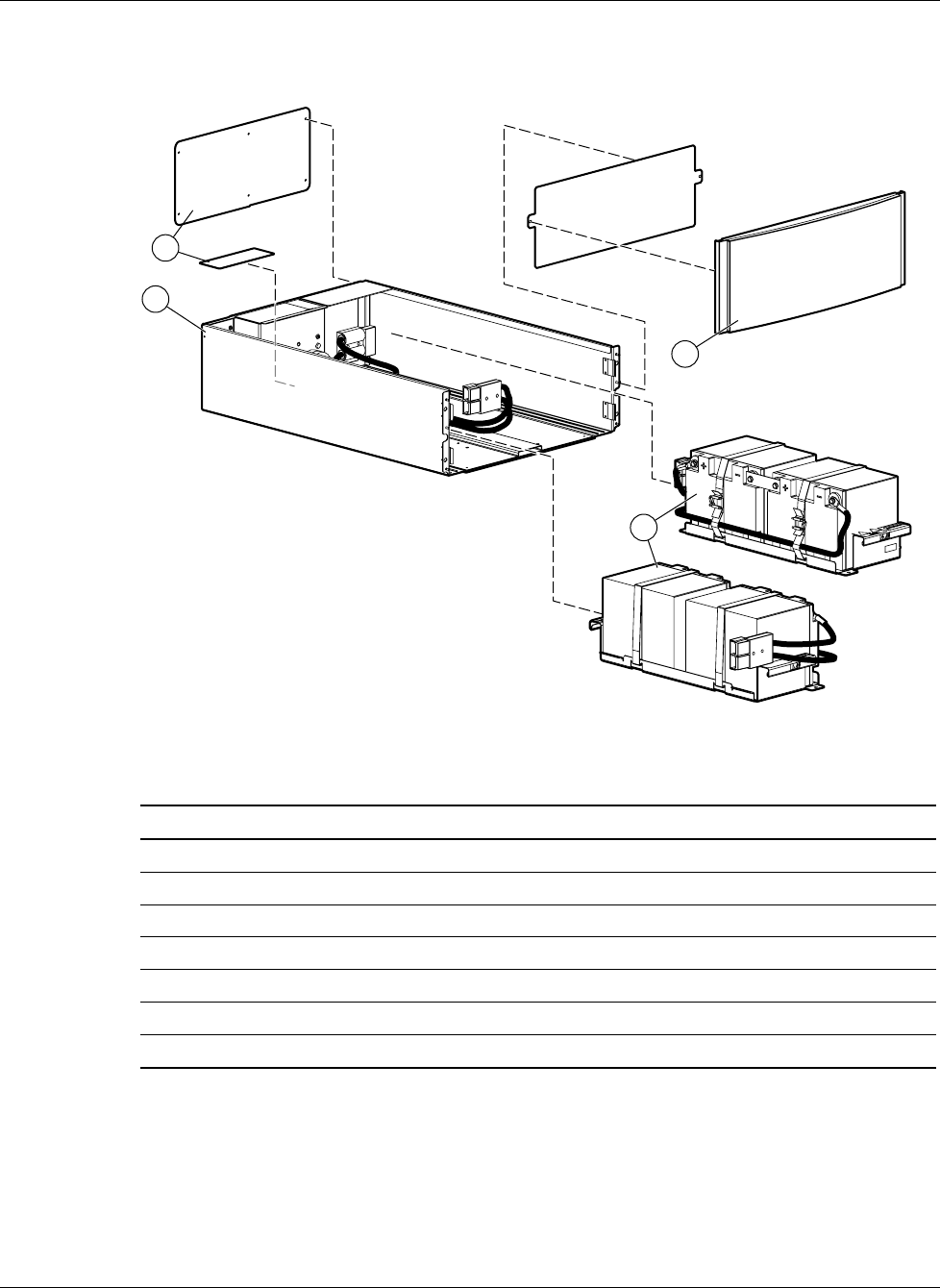

ERM Exploded View of Spare Parts
4
1
2
3
Figure 2-3: ERM exploded view
Table 2-3: ERM Spare Parts List
Reference Description Spare Part #
1 SPS-PANEL, UPS, ERM, W/HRDW 252048-001
2 SPS-BEZEL, ACCESSORY, ERM 252049-001
3 SPS-BATTERY, 12 KVA, 1 SET, ERM 252050-001
4 SPS-MODULE, EXTD RUN 228291-001
5 SPS-RAIL KIT, ADJUST FIXED 332578-001*
6 SPS-RETURN KIT, BTRY 12 KVA, ERM 252051-001*
7 SPS-RETURN KIT, ERM 228296-001*
* Not shown in figure
