Removal and Replacement Procedures
4-4 HP UPS R12000 XR Models Maintenance and Service Guide
Removing and Replacing the Control Bezel
To remove the control bezel:
1. Pull both ends of the control bezel and lift it off the chassis (1).
2. Disconnect the LCD cable from the connector on the control bezel (2).
2
1

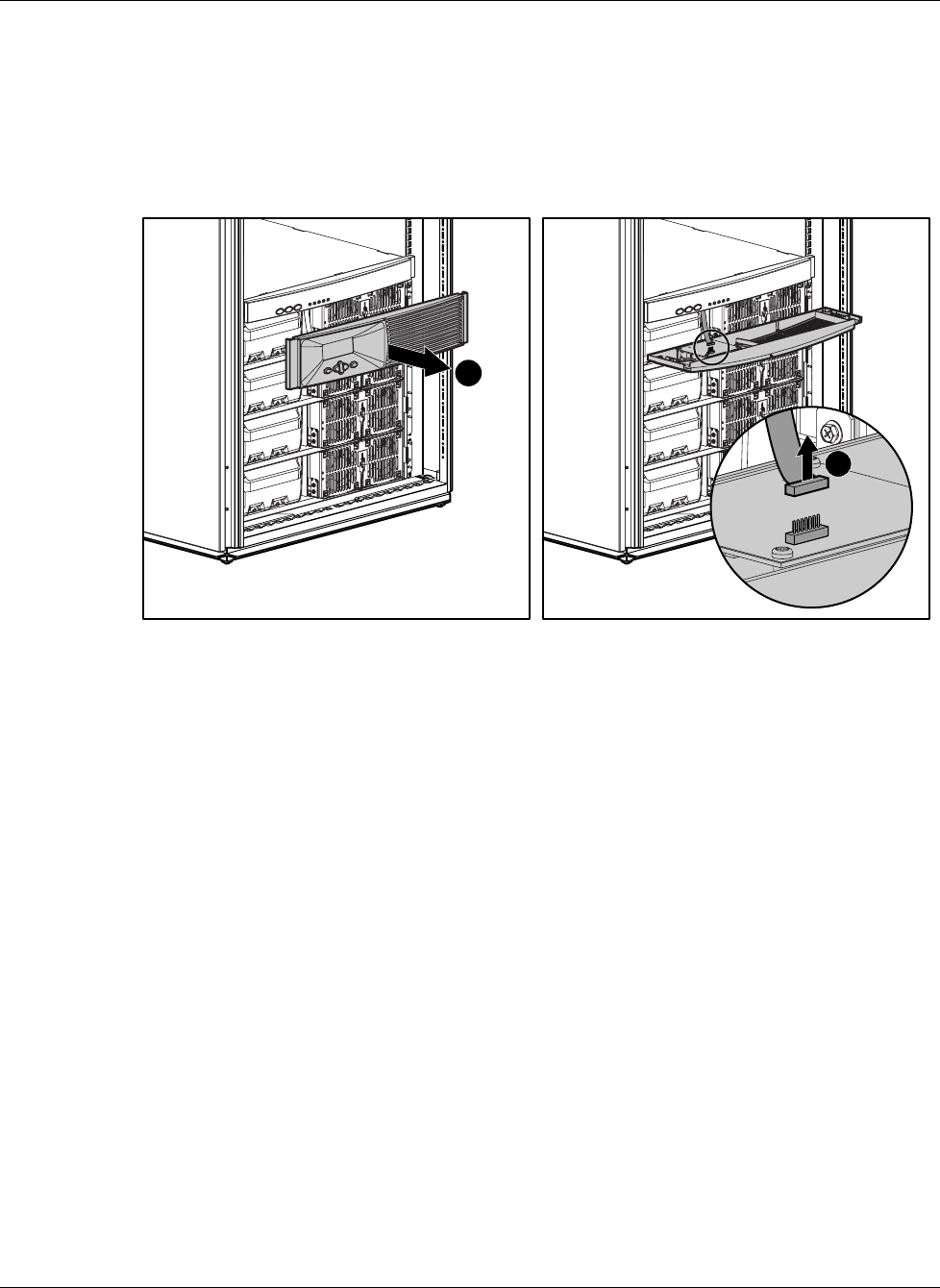

Figure 4-2: Removing the control bezel
3. To replace the control bezel, reverse the preceding steps.
