UPS R12000 XR Models Maintenance and Service Guide

Removal and Replacement Procedures
HP UPS R12000 XR Models Maintenance and Service Guide 4-5
Removing and Replacing the Supervisory Bezel
To remove the supervisory bezel:
1. Remove the control bezel. For more information, refer to the section, “Removing and
Replacing the Control Bezel,” in this chapter.
2. Remove the screw from each end of the supervisory bezel (1).
3. Press both ends of the supervisory bezel and pull it off the chassis (2).
2
1
1

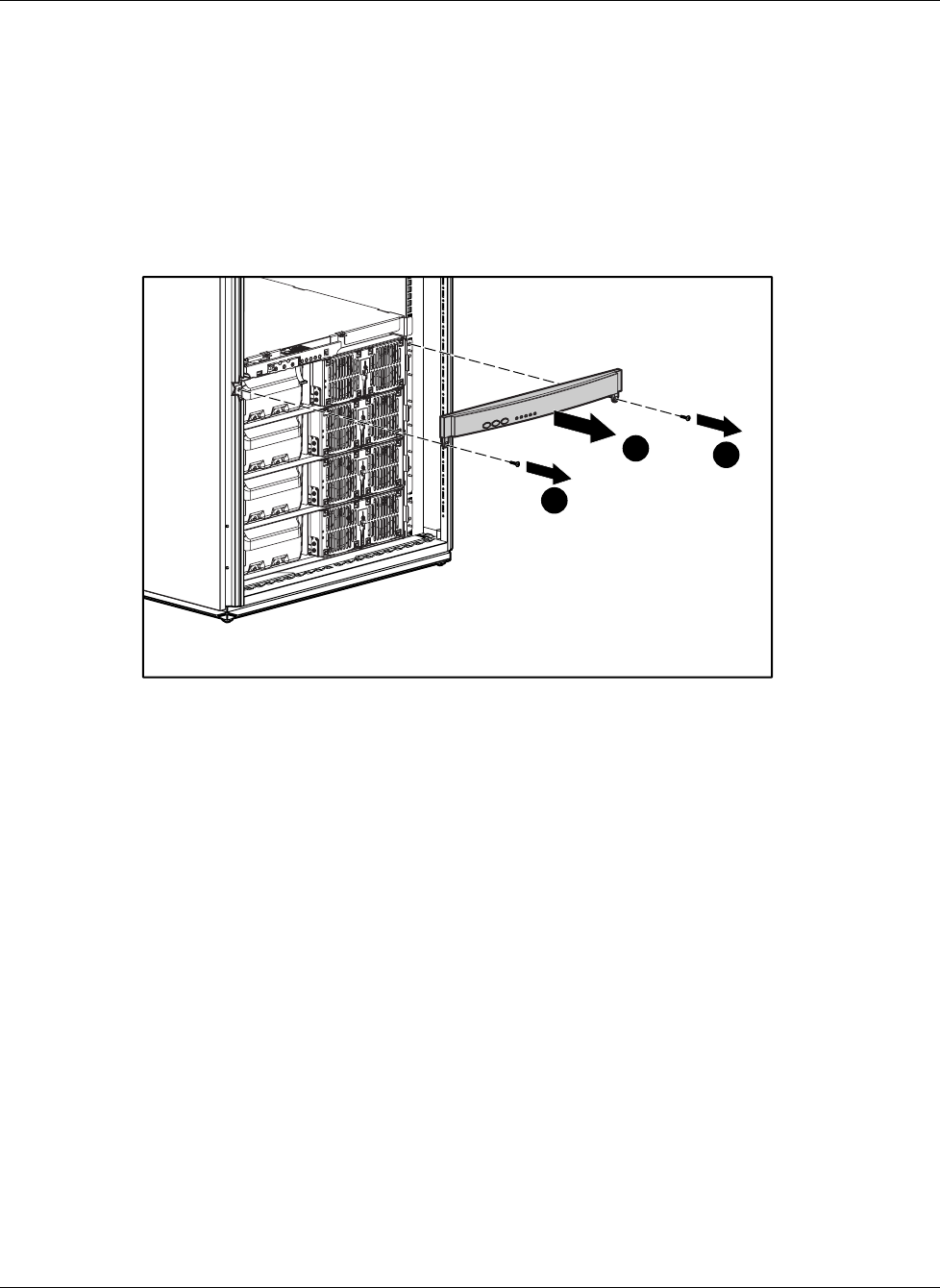

Figure 4-3: Removing the supervisory bezel
4. To replace the supervisory bezel, reverse the preceding steps.
