Removal and Replacement Procedures
4-6 HP UPS R12000 XR Models Maintenance and Service Guide
Removing and Replacing a Front Bezel
To remove a front bezel:
1. Pull in on each end of the bezel and pull it off the chassis.
2. Repeat for the remaining bezels you want to remove.

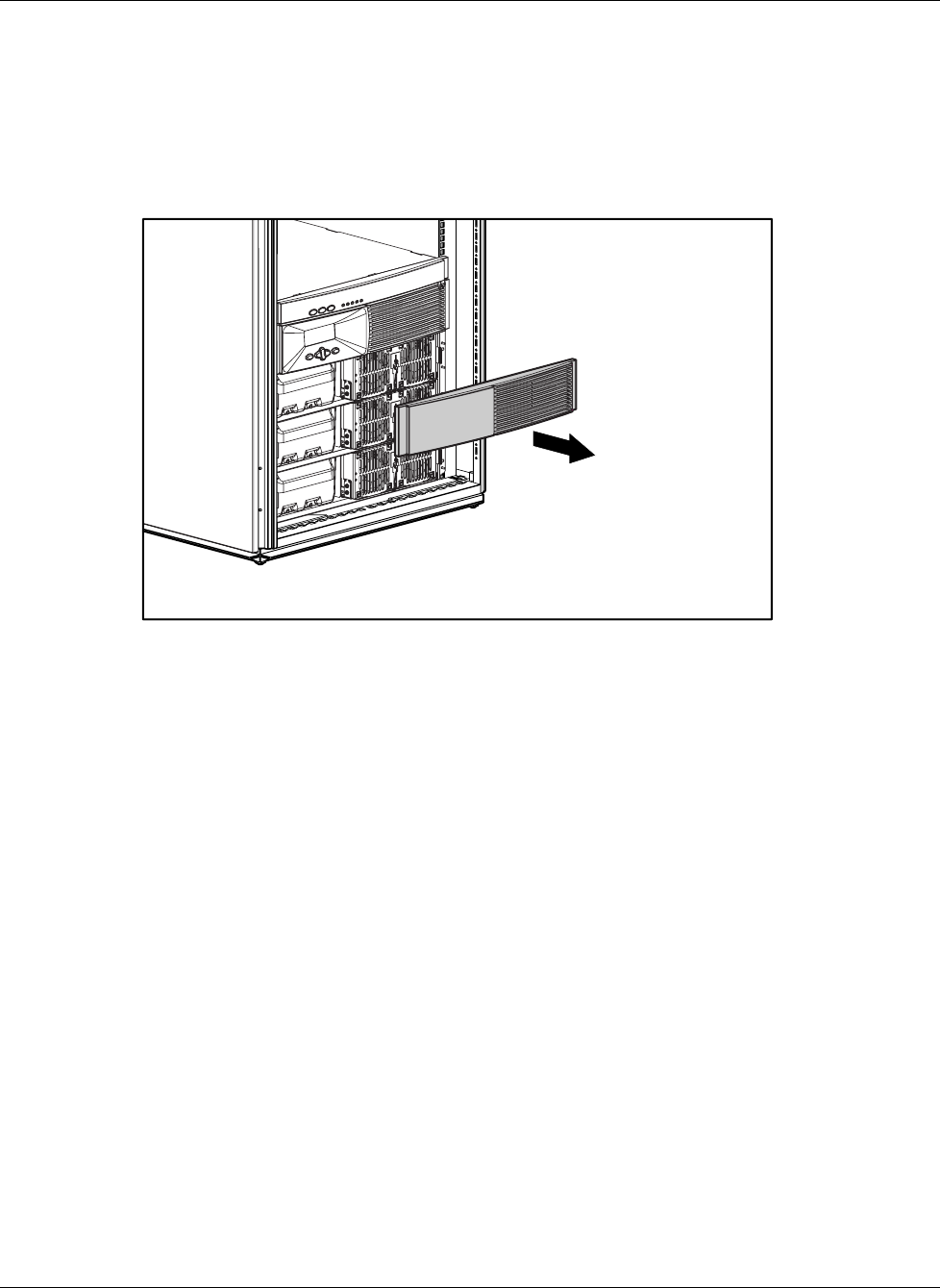

Figure 4-4: Removing a front bezel
3. To replace a front bezel, reverse the preceding steps.
NOTE: Verify that the ventilation holes are over the electronics modules.
