UPS R12000 XR Models Maintenance and Service Guide

Removal and Replacement Procedures
HP UPS R12000 XR Models Maintenance and Service Guide 4-11
Removing and Replacing the Electronics Module
To remove the electronics module:
1. Remove the front bezel at the location of the electronics module you want to remove. For
more information, refer to the section, “Removing and Replacing a Front Bezel,” in this
chapter.
2. Loosen the security screw in the front of the electronics module (1), slide the security
panel upward (2), and pull the hook latch all the way down (3).
3
2
1

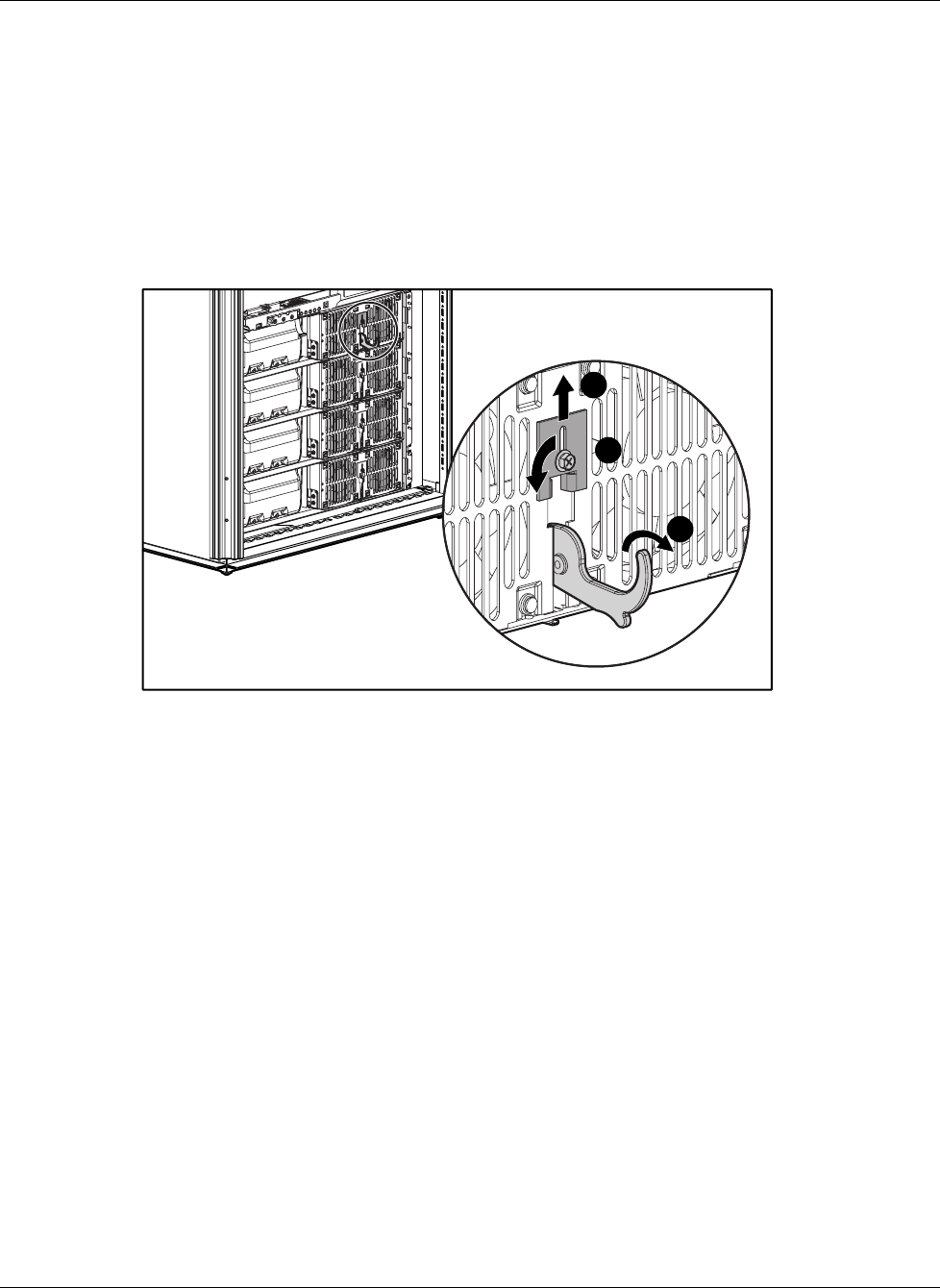

Figure 4-8: Preparing to remove the electronics module
