HP Fabric Clustering System Hardware Components
17
Switch
The switch is as follows:
• AB291A 12-port 4X Fabric Copper Switch

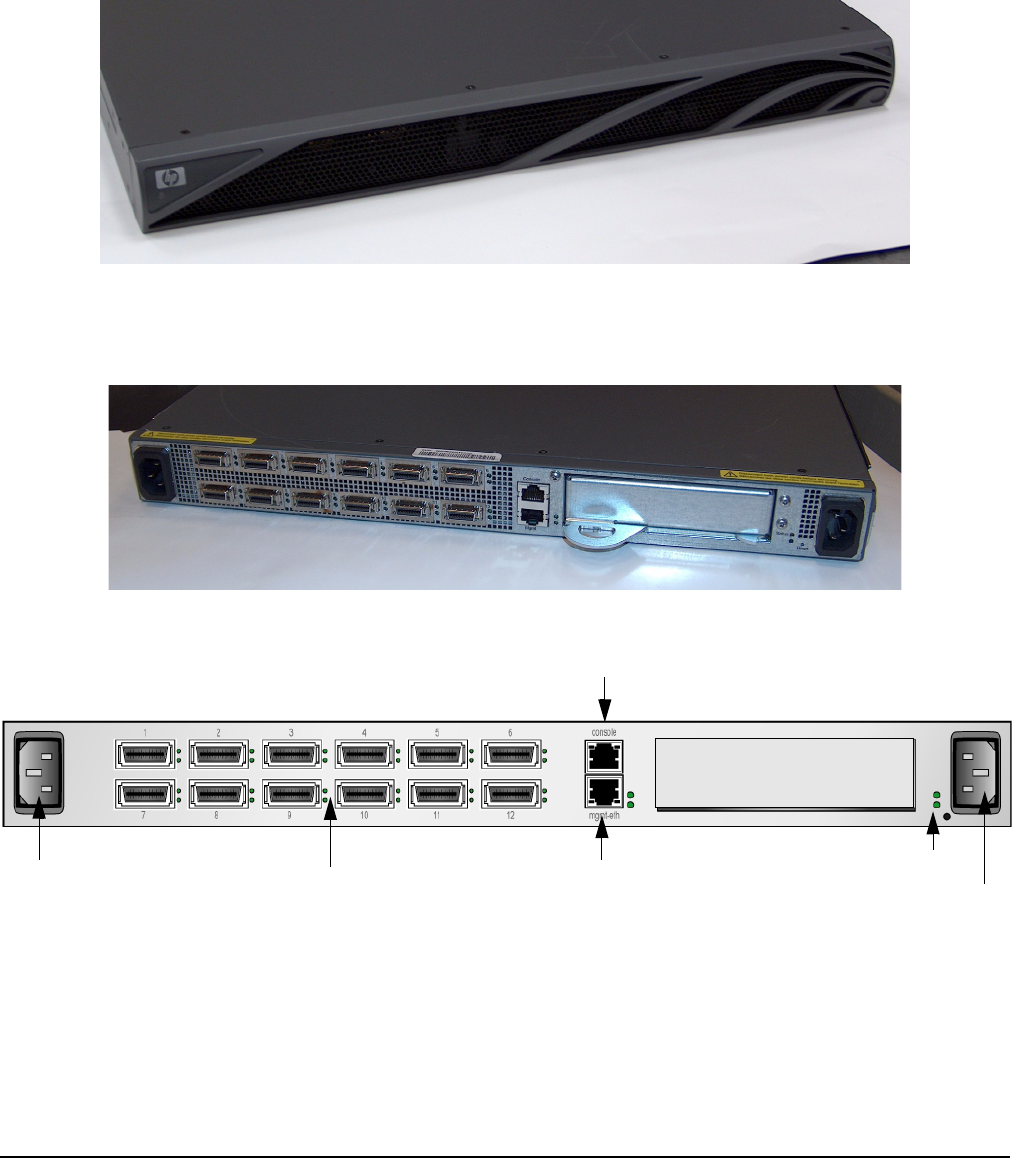

Figure 2-2 Switch Front
Figure 2-3 Rear View of Switch
Figure 2-4 Stylized View of Switch Connectors
Power Plug
Power Plug
HP Fabric Clustering System
Console Port
Ethernet
Management
Port
System Status LEDs
Switch Cluster Connections
