Installing HP Fabric Clustering System
Install the HP Fabric Clustering System Software
Chapter 4
29
• If the system is running, shut it down by executing: shutdown -h.
Respond “y” to the continue to shutdown prompt.
• Wait for the system to shut down completely, and then power off the system by pressing the
system off button. Ensure that the system is grounded.
• Open the system to gain access to the PCI backplane.
• Insert the card into the highest performance PCI-X slot available.
Step 2. Install the card
• Slide the adapter edge-connector into the PCI-X slot until it is fully seated.
• Secure the card and reassemble the system.

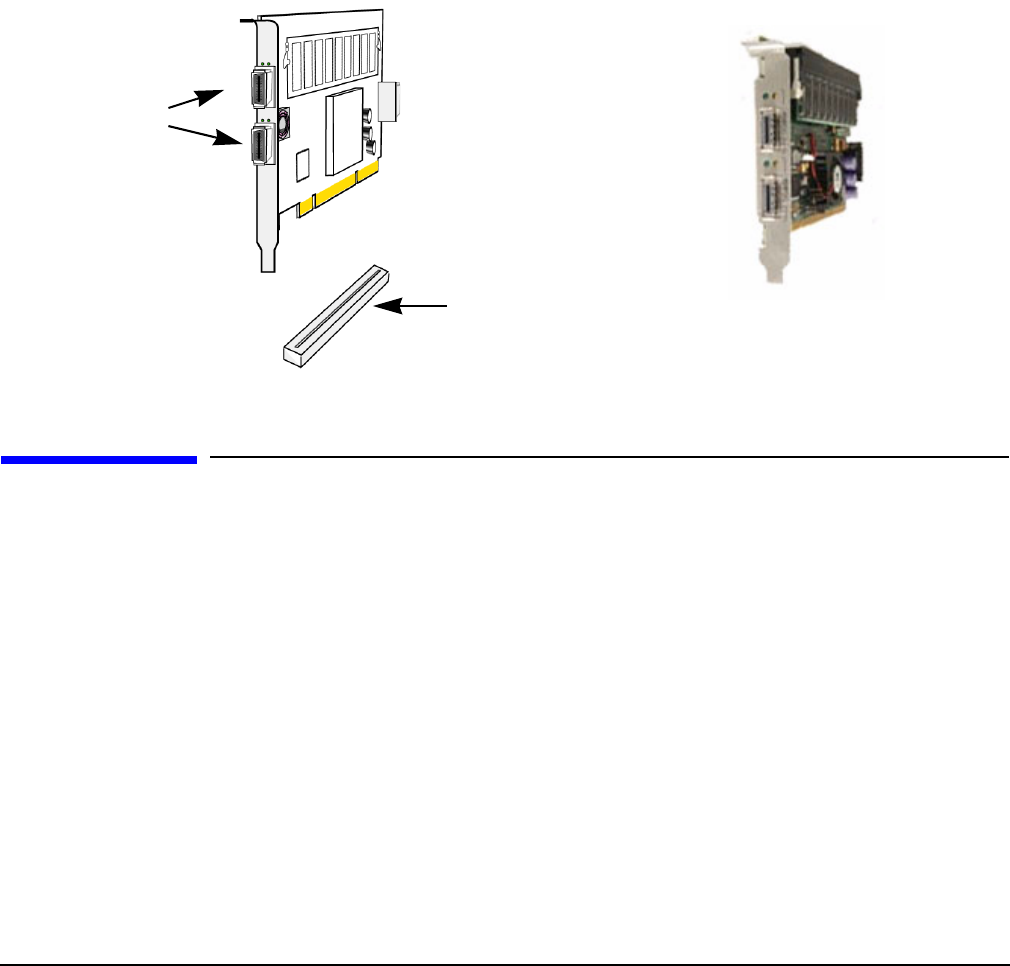

Figure 4-1 Inserting the Host Channel Adapter
Install the HP Fabric Clustering System Software
This section describes the steps necessary to install HP Fabric Clustering System software. The software
must be installed on each instance of the HP-UX operating system in the fabric.
Step 1. Log on to the system as root.
Step 2. Insert the software media into the appropriate drive. If the software is being loaded from a
CD-ROM, go to step 3; otherwise, go to step 4. The software can also be located at
http://www.software.hp.com.
Step 3. Mount the CD-ROM drive by using the following command at the command prompt:
$ mount device_name
where device_name is the name assigned to the CD-ROM drive.
Step 4. Run the swinstall program using the following command:
$ /usr/sbin/swinstall
Front
Back
HCA Fabric
Clustering
System
PCI-X slot
Your adapter may vary from this representation
