AB291A Fabric Clustering System Support Guide (12-port Switch), April 2004

How to Use Windows HyperTerminal
Attaching through Windows HyperTerminal
Appendix C
293
Step 2. Type hypertrm.
Step 3. Click
OK.

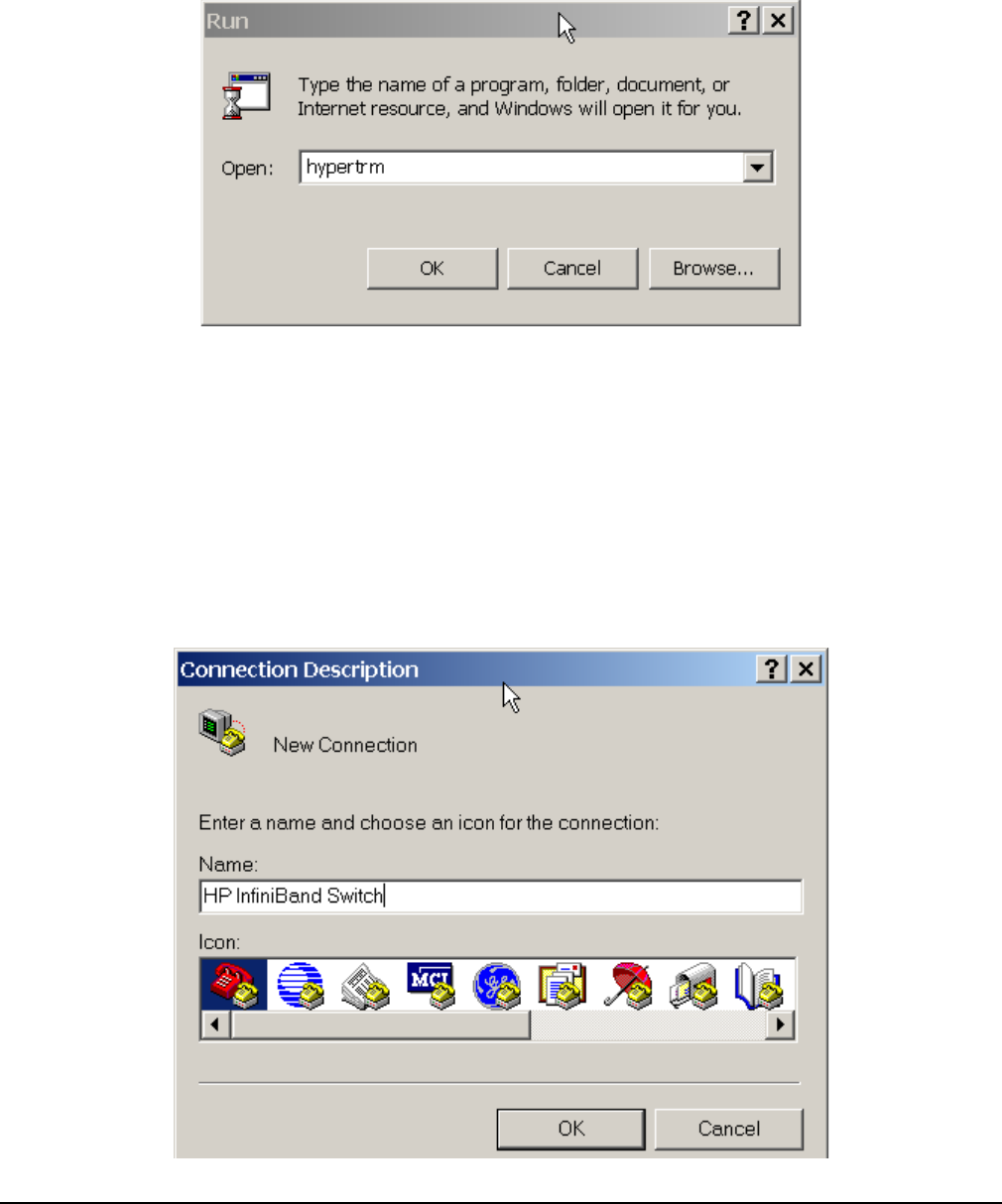

Figure C-1 Run Program Dialog Box
Configuring the HyperTerminal Connection
When HyperTerminal starts, you are presented with a Connection Description dialog box.
Step 1. Enter a Connection Description.
1. Type a name for the connection.
2. Choose the appropriate icon for your connection type.
3. Click
OK.
Figure C-2 Connection Description Dialog Box
