AB291A Fabric Clustering System Support Guide (12-port Switch), April 2004

How to Use Windows HyperTerminal
Attaching through Windows HyperTerminal
Appendix C
294
Step 2. Enter Connection Details.
You will be presented a Connect To dialog box.
1. Specify your
COM Port in the Connect Using section of the dialog box.
2. Click
OK.

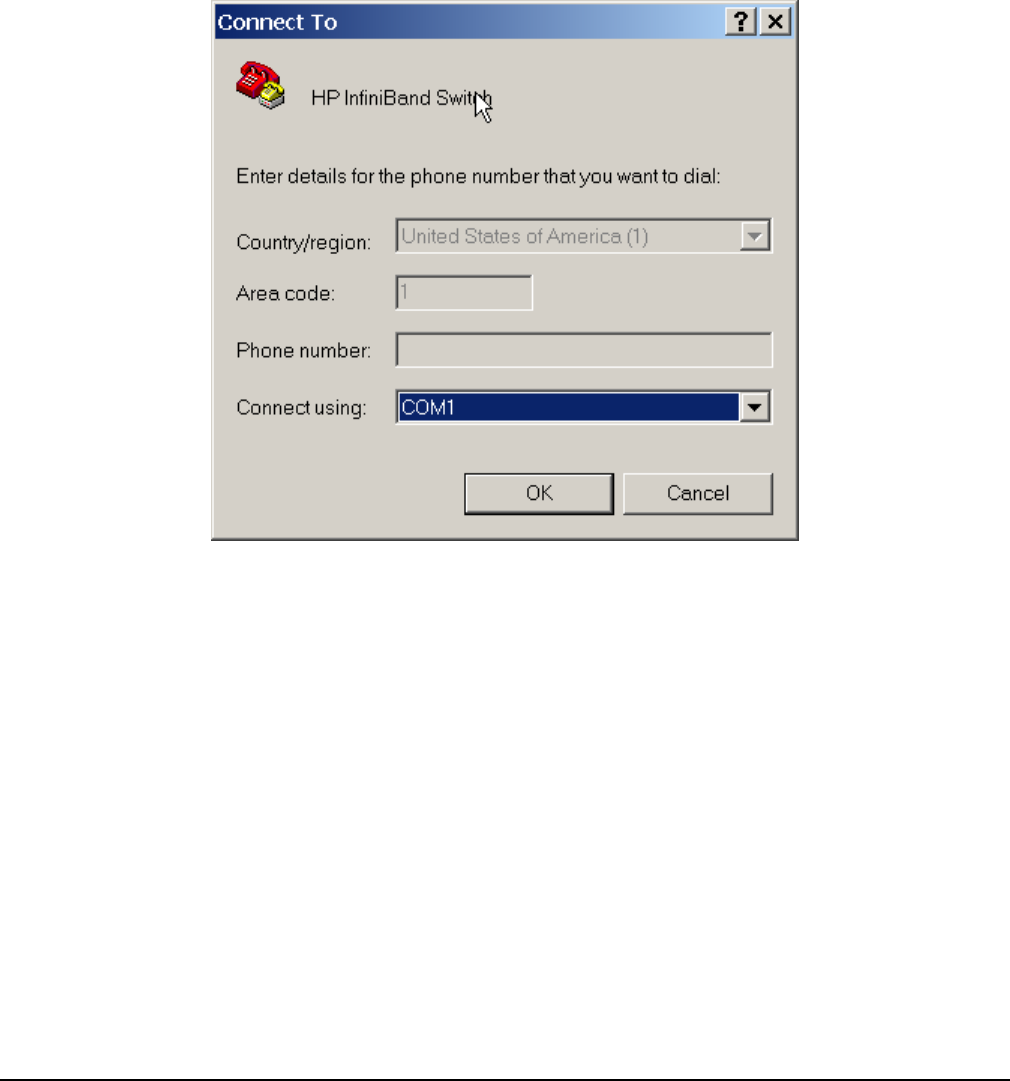

Figure C-3 Connect To Dialog Box
Step 3. Enter COM Port Property Information.
The COM Port Properties dialog box displays.
1. Enter
Bits per second: 9600
2. Enter Data bits: 8
3. Enter Parity bits: None
4. Enter Stop bits: 1
5. Enter Flow control: None
6. Click OK.
