How to Use Windows HyperTerminal
Attaching through Windows HyperTerminal
Appendix C
295

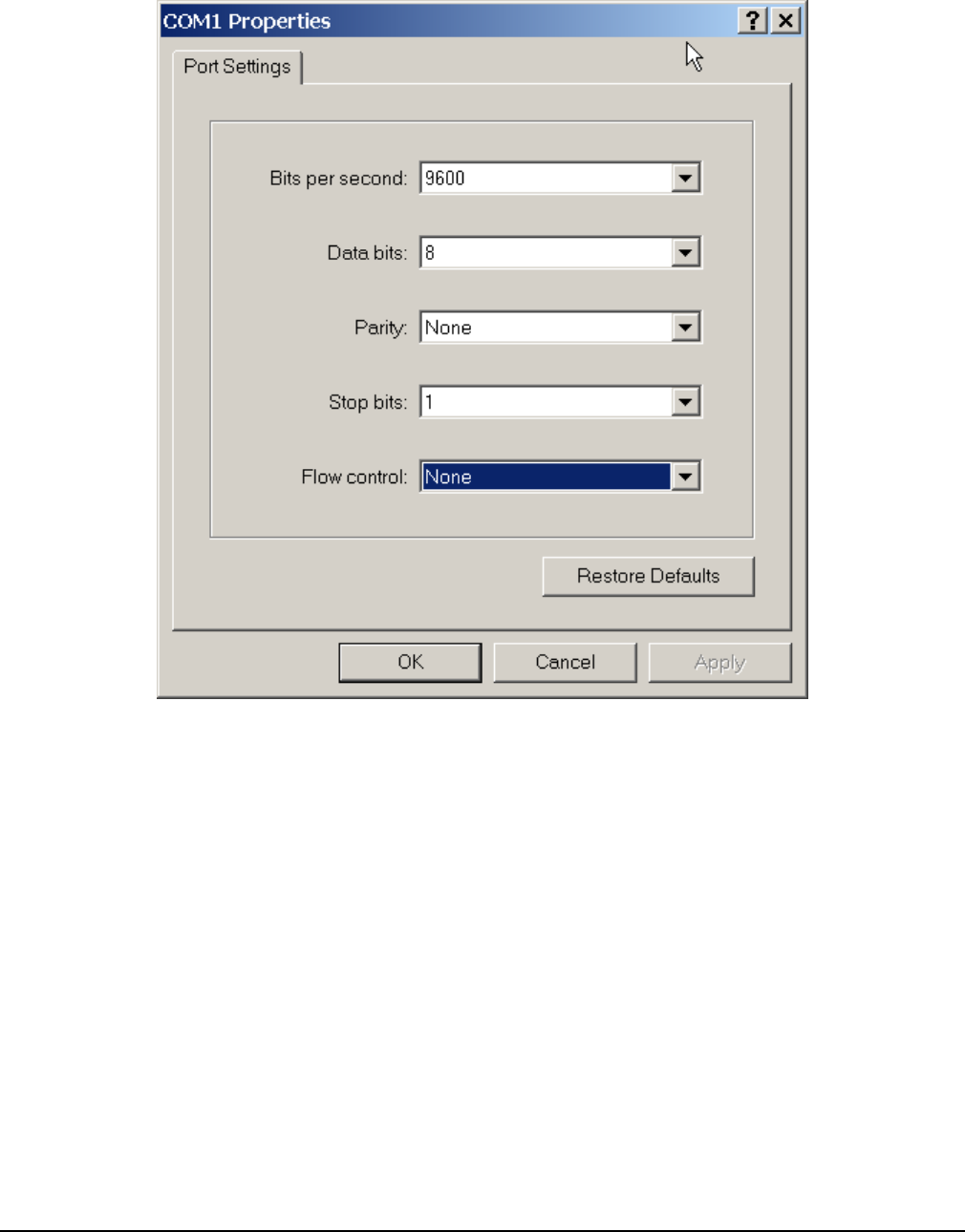

Figure C-4 COM Port Properties Dialog Box
Verifying the HyperTerminal Connection
A blank terminal window will open. You should now be communicating directly between the COMPORT and
the switch. To confirm this, press
Return.
You should see the CLI login prompt.
