AB291A Fabric Clustering System Support Guide (12-port Switch), April 2004

Installing HP Fabric Clustering System
Switch - Rack Installation
Chapter 4
32

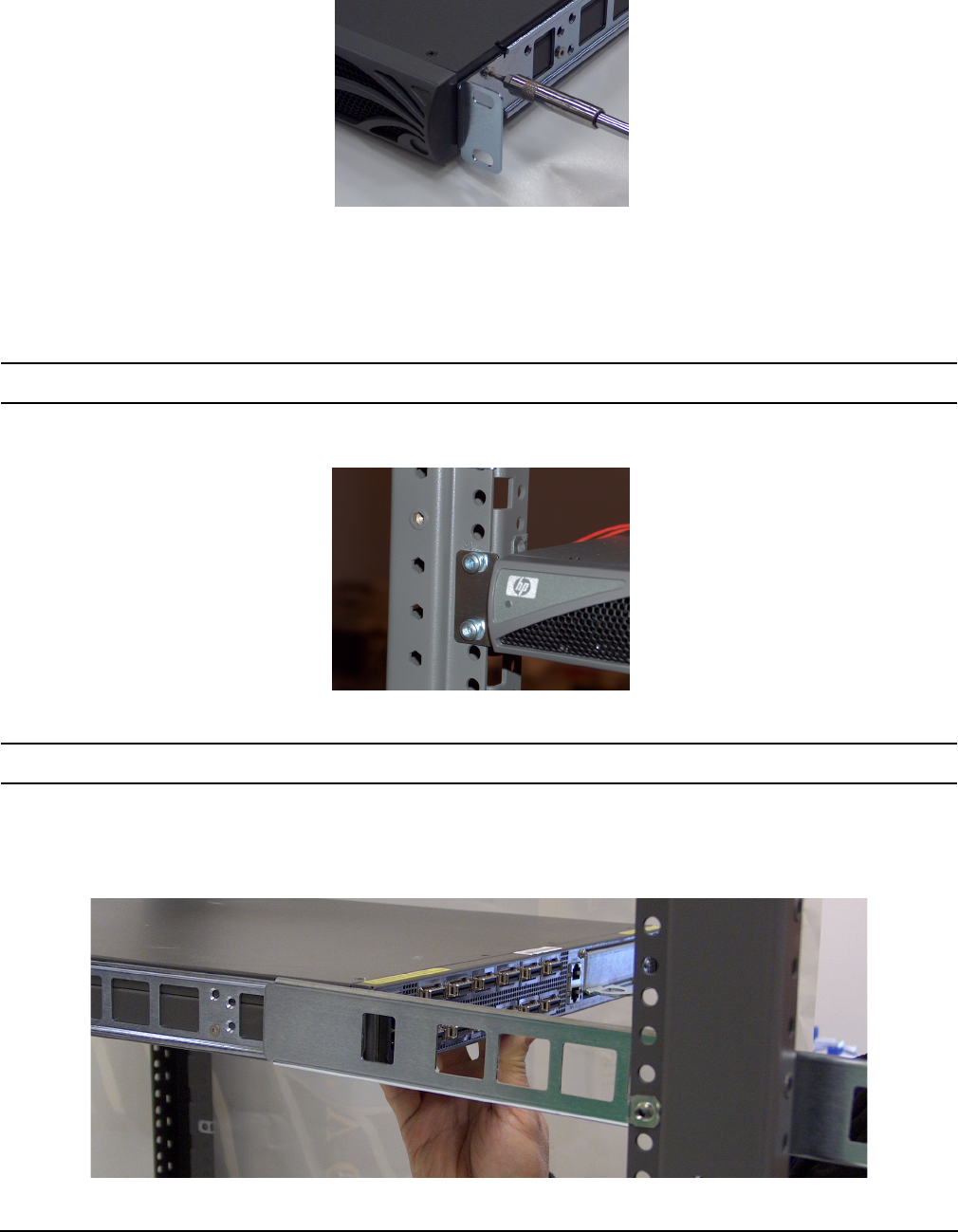

Figure 4-4 Attach Rail to Switch
Step 3. Repeat steps Steps 1 and 2 on the other side of the switch.
The two sliding rails should still be unattached.
Step 4. Loosely attach the switch with one screw through the front of each rail.
CAUTION Temporarily support the switch until the sliding rails are attached.
Figure 4-5 Loosely Attach Rail to Rack
CAUTION Do not let the switch hang unsupported from only the fixed rail flanges.
Step 5. Fit the sliding rails over the fixed rails with the flanges facing outward until the flanges meet the
rack.
Figure 4-6 Fit Sliding Rail over Fixed Rail
