Virtual Connect networks 109

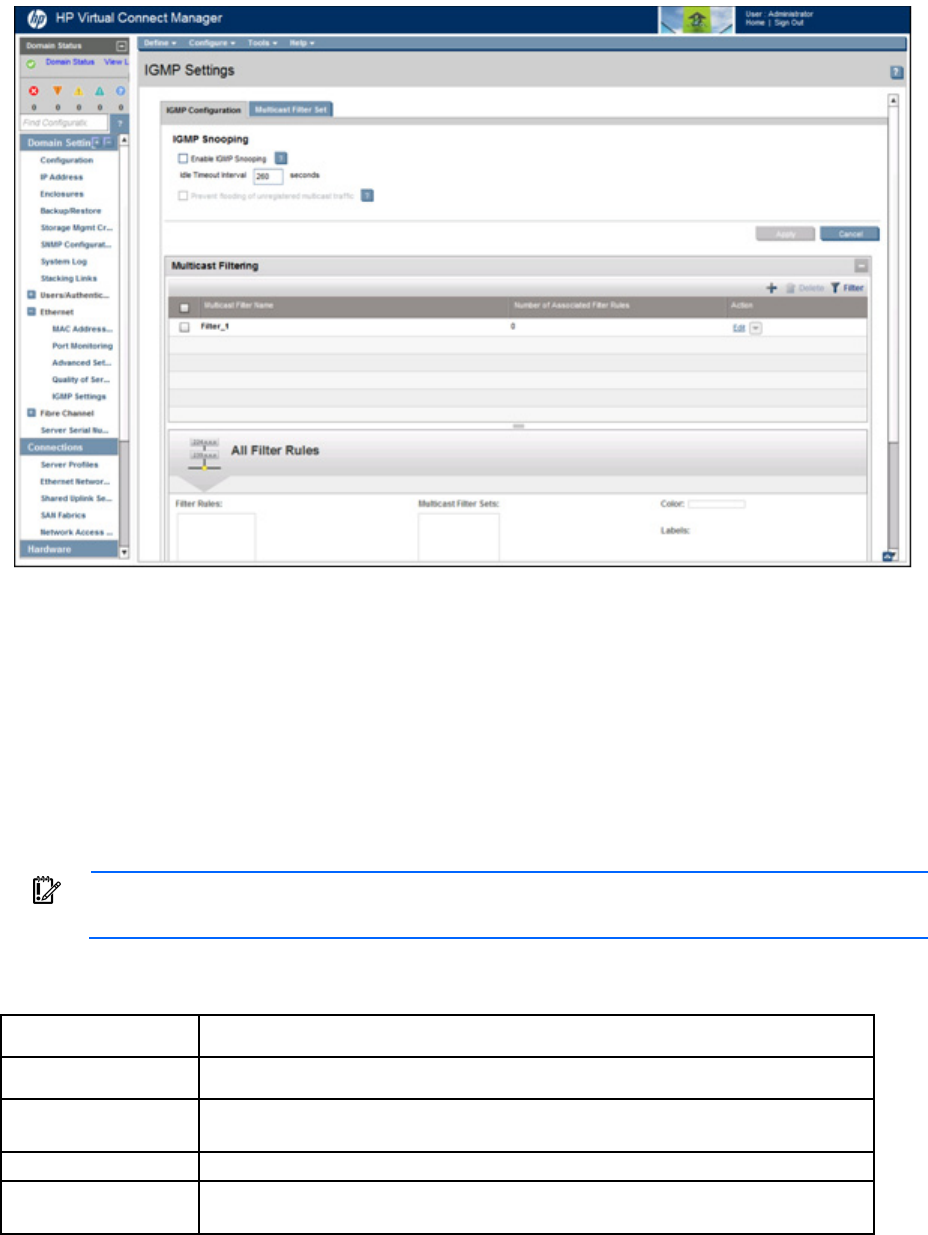

IGMP Settings (IGMP Configuration) screen
From this screen you can do the following:
• Enable or disable IGMP Snooping (on page 111, "IGMP Settings (IGMP Configuration) screen" on
page 109)
• Modify the idle timeout interval for IGMP Snooping
• Allow or prevent flooding of unregistered IGMP multicast traffic
• Monitor and manage multicast group membership for hosts subscribing to IGMP multicast traffic
• Manage new Multicast Filter rules for a Multicast filter ("Multicast Filtering" on page 112)
• Configure IGMP multicast filters and associate them with one or more profile connections
IMPORTANT: Users with server role permissions cannot modify IGMP settings when the VC
domain is under VCEM control.
The following table describes the columns within the summary table on the IGMP Settings (IGMP
Configuration) screen.
Column name Description
Multicast Filter Name
Name of the multicast filter
Number of Associated
Filter Rules
Displays the number of filter rules associated with the filter
Action
Perform edit and delete operations
All Filter Rules
When a filter is not selected, the status (number of rules and labels) of all filters in the
domain is displayed. When a filter is selected, the status of that filter is displayed.
