Virtual Connect server profiles 216
c.

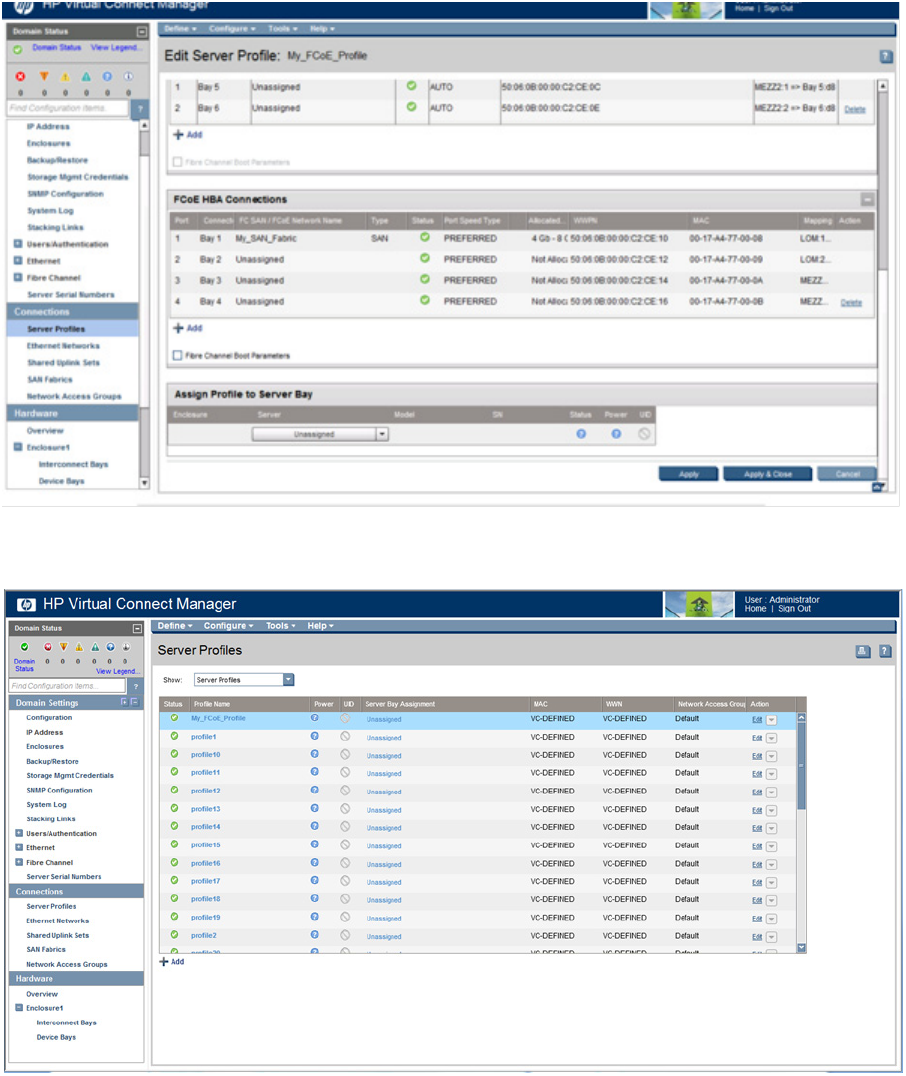

Click Apply to save changes and remain on the Edit Server Profile screen, or Apply & Close to save
changes and go to the Server Profiles screen.
d. On the Server Profiles screen, be sure that the Server Bay Assignment for the server profile with FCoE
connections is Unassigned.
