Virtual Connect domains 25
c-Class BladeSystem Setup and Installation Guide on the Installing tab of the HP BladeSystem Technical
Resources website (http://www.hp.com/go/bladesystem/documentation).

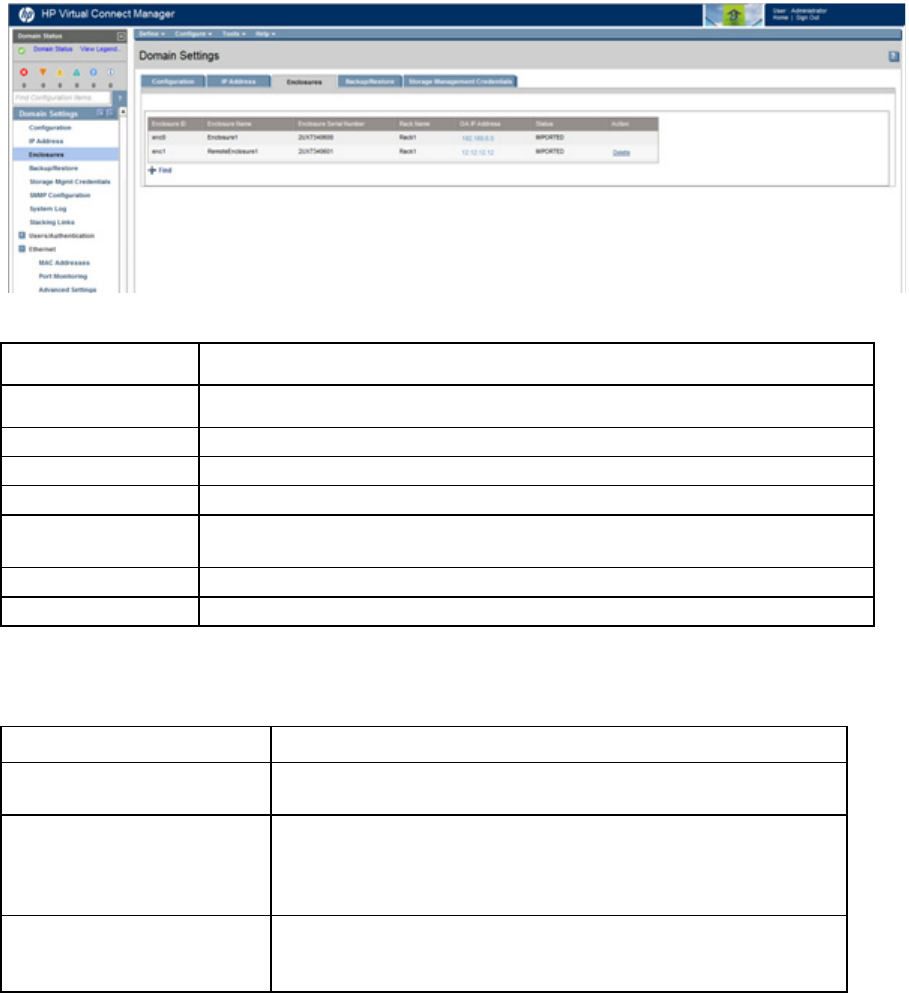

The following table describes the columns within the Domain Settings (Enclosures) screen.
Column Description
Enclosure ID
Assigned ID of the enclosure
Enclosure name
Name of the enclosure
Enclosure serial number
Serial number of the enclosure
Rack name
Name of the rack (assigned through the Onboard Administrator)
OA IP Address
"Local Enclosure" indicates this enclosure is managed by the local Onboard
Administrator
Status
Displays whether the enclosure has been imported
Action
Perform import and delete operations.
The following table describes the available actions in the Domain Settings (Enclosures) screen. Clicking
another link in the pull-down menu or left navigation tree causes current edits that have not been applied to
be lost.
Task Action
Import an enclosure
Click the Import link in the Action column, or left-click on the enclosure
row, right-click to display a menu, and then select Import.
Add and import a remote
enclosure ("Adding and
importing a remote enclosure" on
page 25)
Click Find below the table, or right-click inside the table, and then select
Find.
Remove a remote enclosure
("Removing a remote enclosure"
on page 27)
Click the Delete link in the Action column, or left-click on the enclosure
row, right-click to display a menu, and then select Delete.
Adding and importing a remote enclosure
Adding and importing a remote enclosure requires domain and server role permissions. Virtual Connect
Manager supports up to four c7000 enclosures in a single domain.
