Virtual Connect server profiles 211
e.

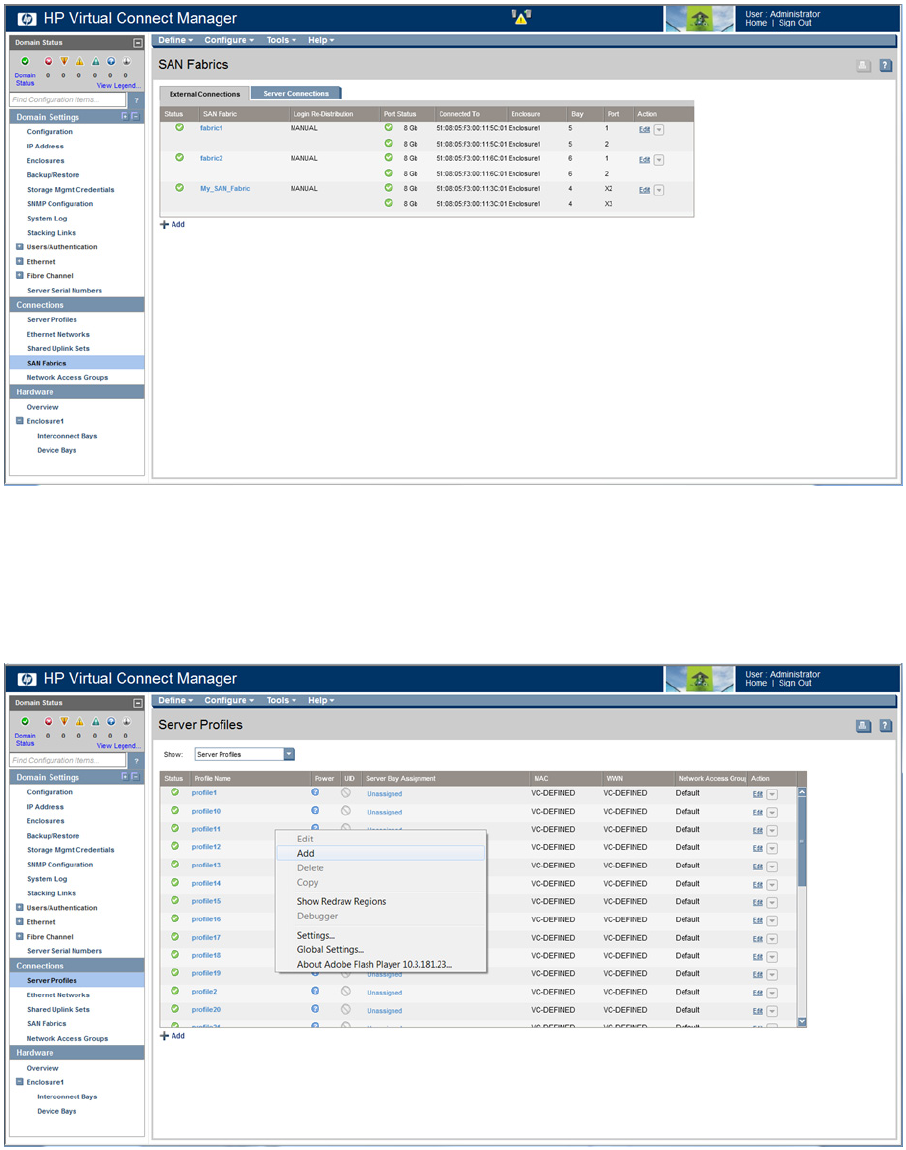

Be sure that the SAN fabric appears on the SAN Fabrics screen with the appropriate bay and ports
assigned.
3. Add a server profile for the HP ProLiant BL680c G7 Server Blade.
a. Click Server Profiles in the left navigation tree or select Server Profile from the Define menu at the top
of the screen.
b. Right-click the Server Profiles list on the Server Profiles screen, and then select Add, or click the Add
button.
The Define Server Profile screen appears.
c. Enter a Profile Name.
