Virtual Connect server profiles 217
e.

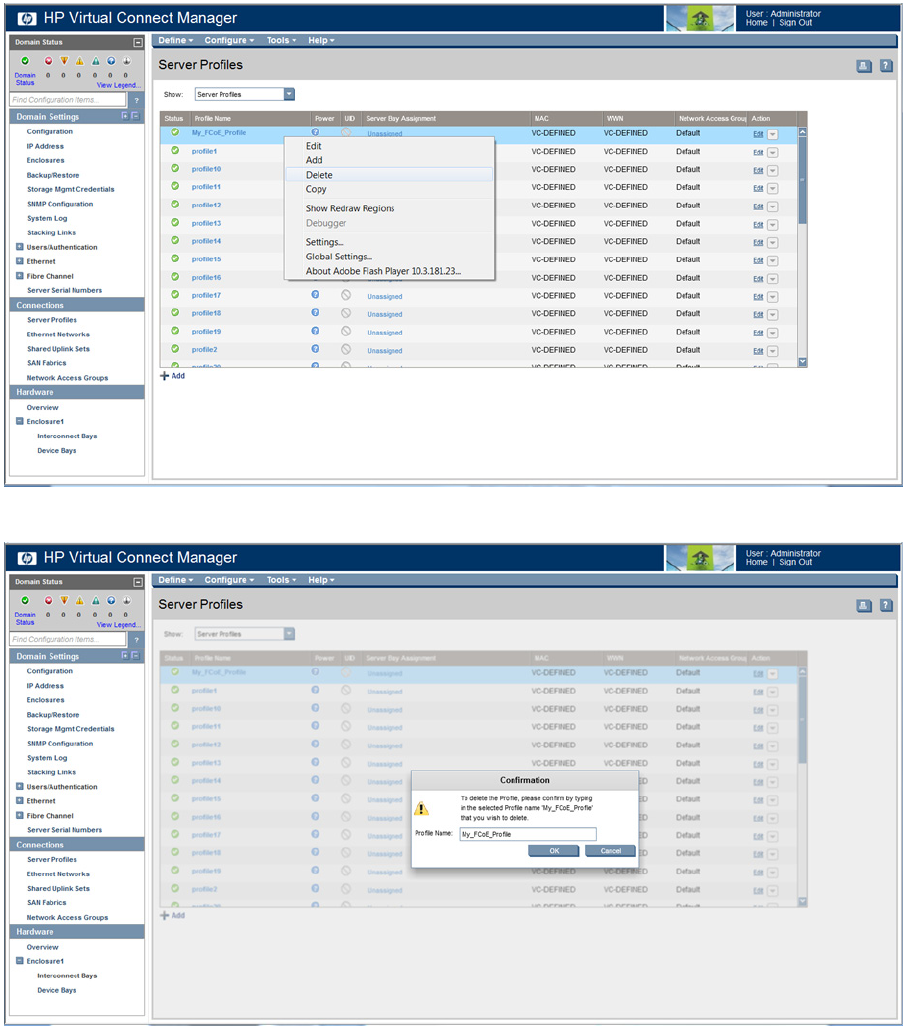

Right-click the server profile with FCoE connections, and then select Delete.
f. In the Confirmation dialog box, enter the name of the server profile, and then click OK.
3. Delete the SAN fabric:
a. Click SAN Fabrics in the left navigation tree. The SAN Fabrics screen appears.
