Virtual Connect modules 251
Row Description
Uplink Ports Used
Number of uplink ports used to connect to the SAN. This number specifies the
oversubscription ratio (4:1, 8:1, or 16:1).

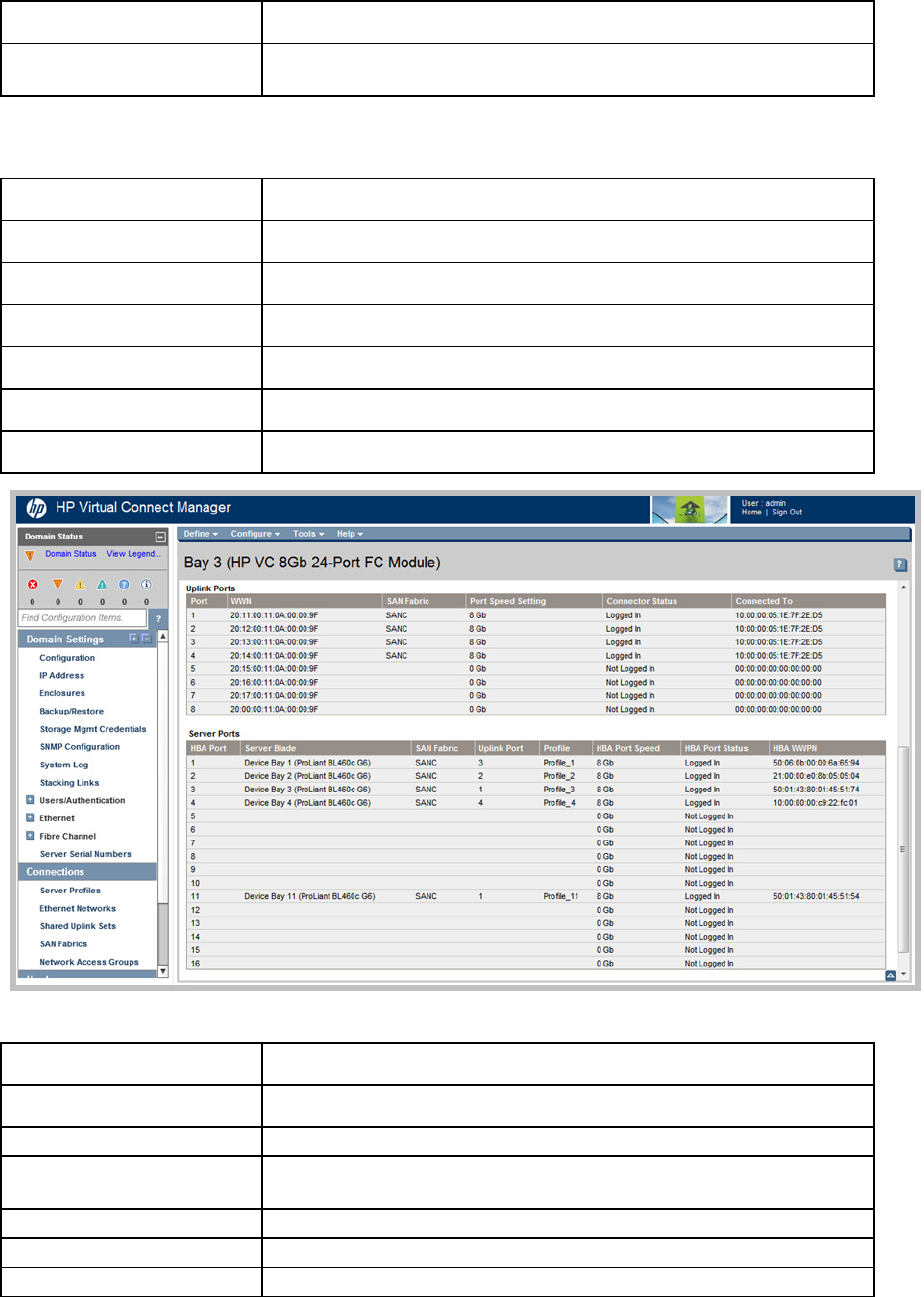

The following table describes the rows within the Interconnect Bay Information table in the Bay Summary
screen.
Row Description
Part Number
The part number to be used when ordering an additional module of this type
Product Name
The common descriptive name of the module
Serial Number
The unique serial number of the module
Spare Part Number
The part number to be used when ordering a replacement module of this type
Manufacturer
The manufacturer of the module
Node WWN
WWN assigned to the module
The following table describes the rows within the Uplink Port information table in the Bay Summary screen.
Column Description
Port
The uplink port number
WWN
Factory assigned WWPN for this uplink port
SAN Fabric
Name of the SAN Fabric connected to the uplink port
To edit the SAN Fabric, click the SAN Fabric in the left navigation tree.
Port Speed Setting
Speed setting of the uplink port
Connector Status
Status of the uplink port
Connected To
WWN of the principal FC switch to which the VC-FC uplink port is connected
The following table describes the rows within the Server Port Information table in the Bay Summary Screen.
