Virtual Connect networks 134
Task Action
Add a single associated network
Click Add above the table, or right-click on the header row to display a menu,
and then select Add. Select the a single Associated Network radio button. For
more information, see "Defining a shared uplink set (on page 127)."
Add multiple associated networks
Click Add above the table, or right-click on the header row to display a menu,
and then select Add. Select the multiple Associated Networks radio button,
and then enter the network name prefix and suffix and the VLAN ID ranges in
the fields provided.
Enabled native VLAN on the
network
Edit the associated network properties and select the box next to Native. Only
one VLAN can be designated as the native VLAN.
Enable Smart Link on the Network
Edit the associated network properties and select the box next to Smart Link.
Designate the network as a
private network
Edit the associated network properties and select the box next to Private
Network.
Edit associated FCoE network
properties
Click Edit.
Edit associated network
properties
Click the Edit link in the Action column, or left-click to select an associated
network, right-click to display a menu, and then select Edit.
Delete an associated FCoE
network
Click Delete. You cannot delete an associated FCoE network if it is assigned
to a profile.
Delete an associated network
Click the Delete link in the Action column; left-click to select an associated
network, right-click to display a menu, and then select Delete; or select the
checkboxes for the associated networks you want to delete, and then click
Delete.
Save changes
Click Apply.
Cancel without saving changes
Click Cancel.

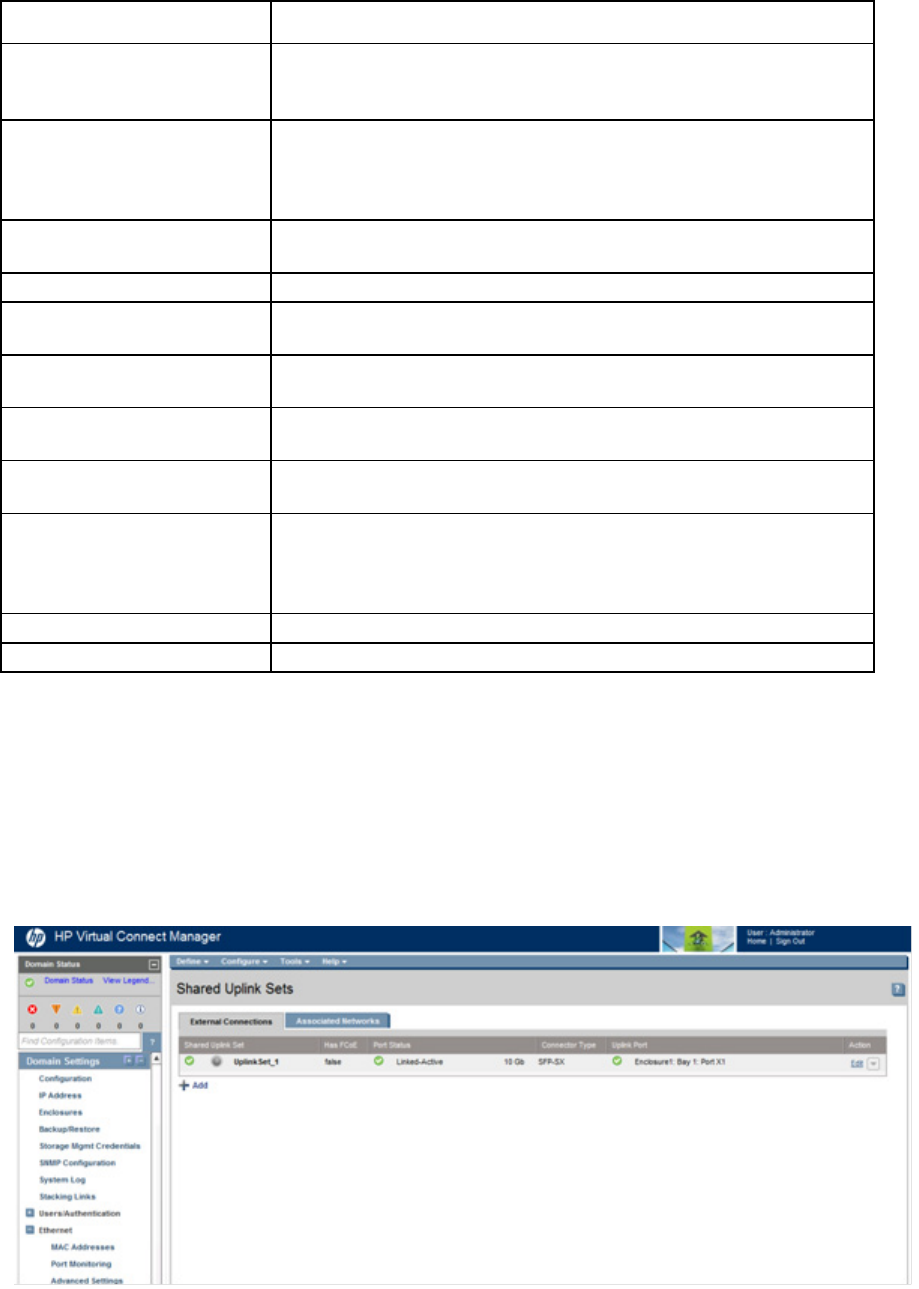

Shared Uplink Sets (External Connections) screen
To access this screen, click the Shared Uplink Sets link in the left navigation tree, or select Shared Uplink Set
from the Define menu at the top of the screen.
This summary screen provides an overview of external shared uplink connections. This screen is only
applicable if multiple networks identified by VLAN tags are being connected over a single external uplink set.
The following table describes the fields within the Shared Uplink Sets (External Connections) screen.
