HP Virtual Connect Manager 19

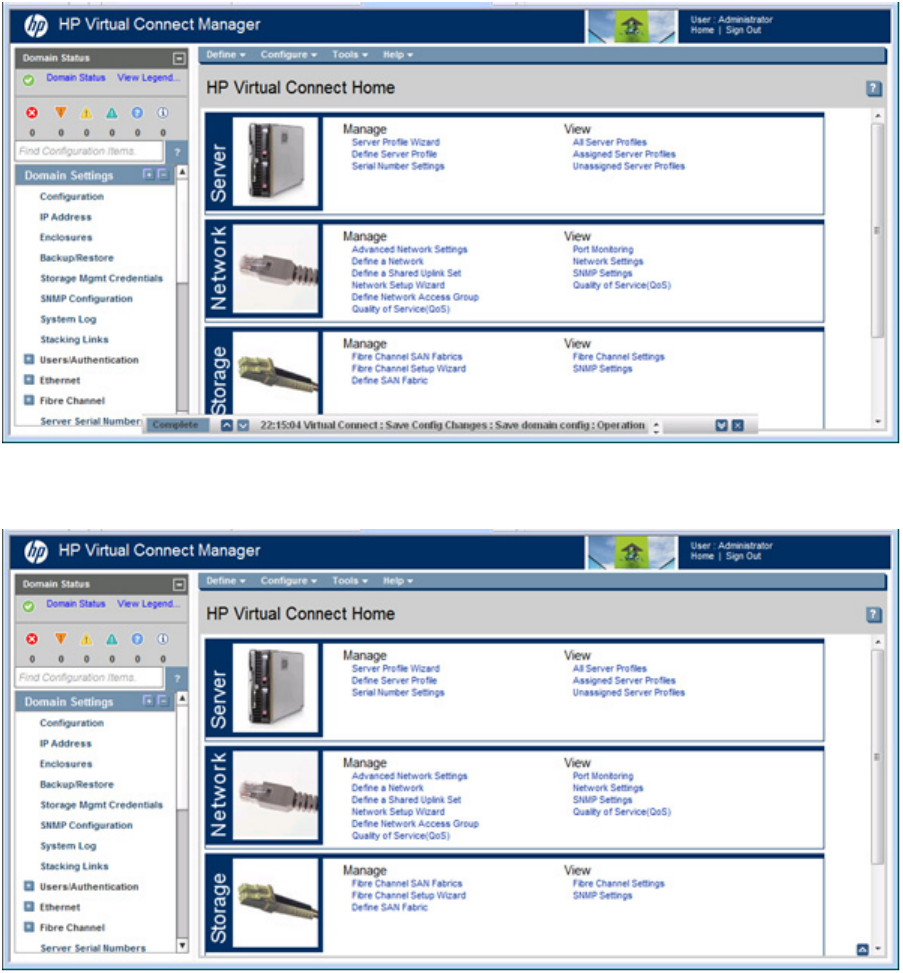

• A close button hides the activity pane for the current GUI session.
The activity pane is hidden automatically when the activity state is idle. When the activity pane is hidden, a
control appears in the bottom-right corner of the GUI. Click the control to display the activity pane.
Only certain, long-running VC activities are reported in the activity pane, including:
• Enclosure Import
• Enclosure Recovery (after NO-COMM)
• Enclosure Recovery (after VC restart or failover)
• Server Profile Operations (create, update, assign and unassign, and delete)
• Module Recovery
• Persist Configuration
