Virtual Connect modules 248
Pluggable Module Information* Description
vendor-oui
IEEE company ID of the manufacturer (not HP). This is defined in SFF-8472
in the Vendor OUI [Address A0h, Bytes 37-39] field.
vendor-part-number
Manufacturer part number (not an HP part number). This is defined in
SFF-8472 in the Vendor OUI [Address A0h, Bytes 40-55] field.
vendor-revision
Manufacturer part revision number (not an HP part revision number). This
is defined in SFF-8472 in the Vendor OUI [Address A0h, Bytes 56-59]
field.
*This information is only available for physical uplink ports. It is not available for Flex-10 subports.

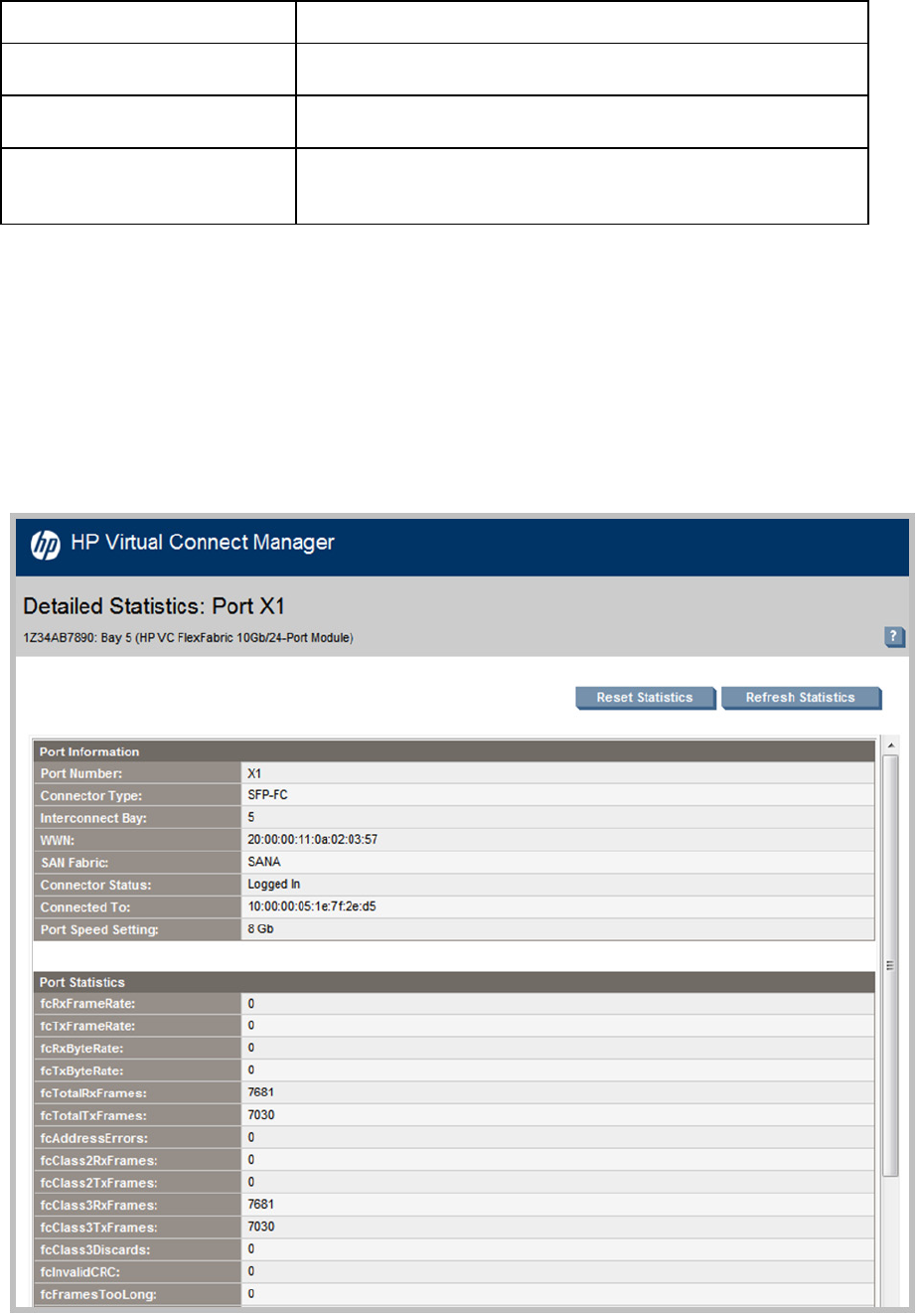

FC Port Detailed Statistics screen
This screen provides details on Port Information and Port Statistics, and is available only on physical uplink
ports. Detailed statistics are not supported on FC interconnect modules. However, FC-capable ports do
support detailed statistics.
To reset the statistics, click Reset Statistics.
To refresh the statistics, click Refresh Statistics.
