Virtual Connect domains 29
3.
Select the Ignore firmware version in restored configuration file checkbox to allow restoring a domain
configuration from a backup file that was created using a different version of VC firmware.
IMPORTANT: Restoring a configuration from a backup file saved by firmware version later than
what is currently running is not supported. For example, if you are currently running Virtual
Connect v3.60, you can restore a configuration from a backup file that was created using v3.10
or v3.51, but not v3.70.
4. Enter the appropriate key if the configuration file is encrypted.
5. Click Restore Configuration.
6. Confirm the domain configuration to be restored, and then click OK.
If restoring a configuration file that has multiple enclosures, each remote enclosure must be re-authenticated
for security reasons.
For more information, see "Recovering remote enclosures (on page 273)."

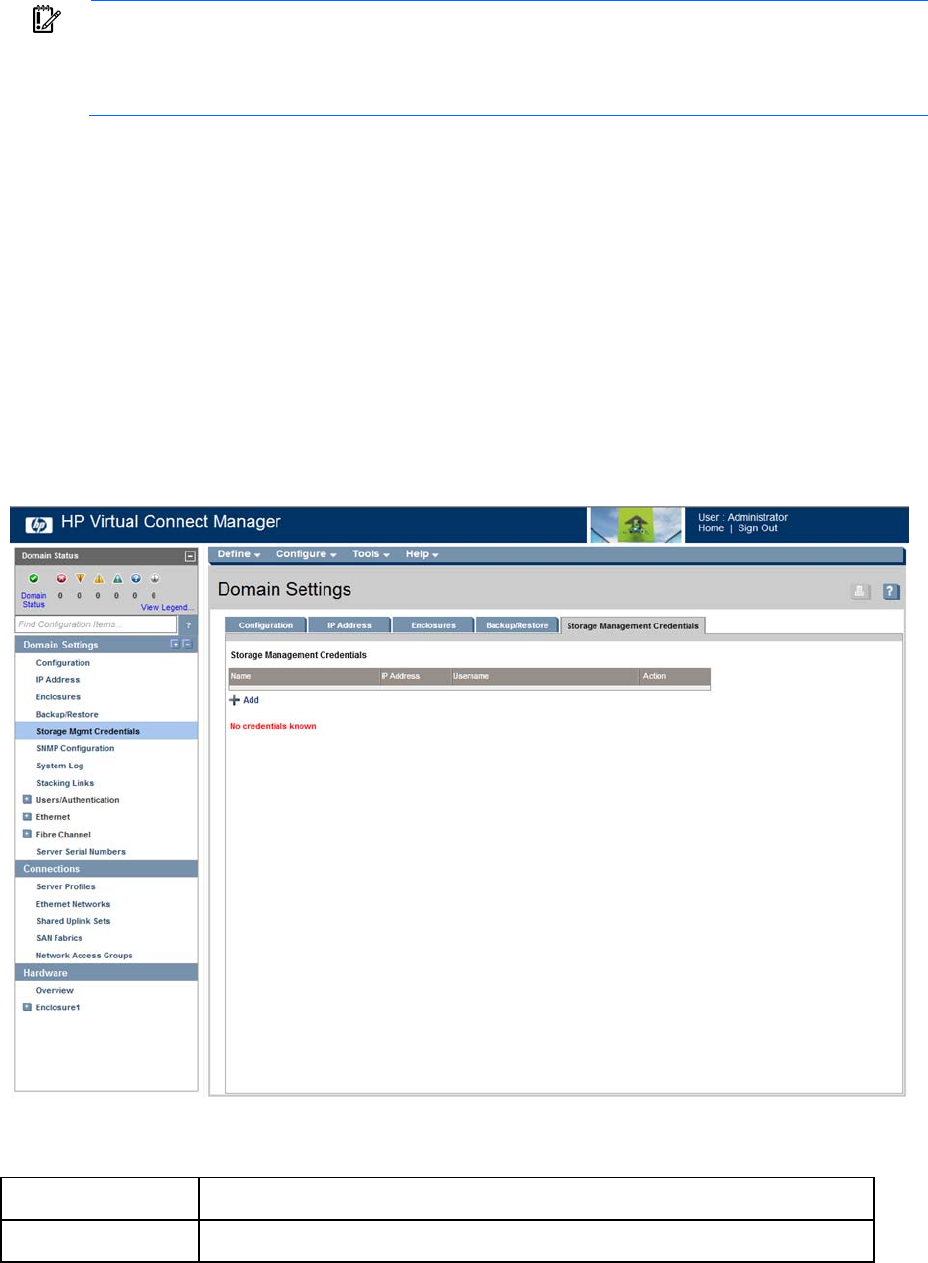

Domain Settings (Storage Management Credentials) screen
Use this screen to manage the credentials of HP P4000 series devices in the domain. The IP address is the IP
address of the LHN CMC interface. This IP address must be accessible from the same management network
where Virtual Connect and Onboard Administrator reside.
The following table describes the columns within the Domain Settings (Storage Management Credentials)
screen.
Column Description
Name
Name for the iSCSI storage management
