Virtual Connect fabrics 158
Task Action
Delete a SAN fabric
Click the Delete link in the Action column, or left-click to select a fabric,
right-click to display a menu, and then select Delete.
Re-distribute logins
Click the ReDistribute link in the Action column, or left-click to select a
fabric, right-click to display a menu, and then select Redistribute Logins.

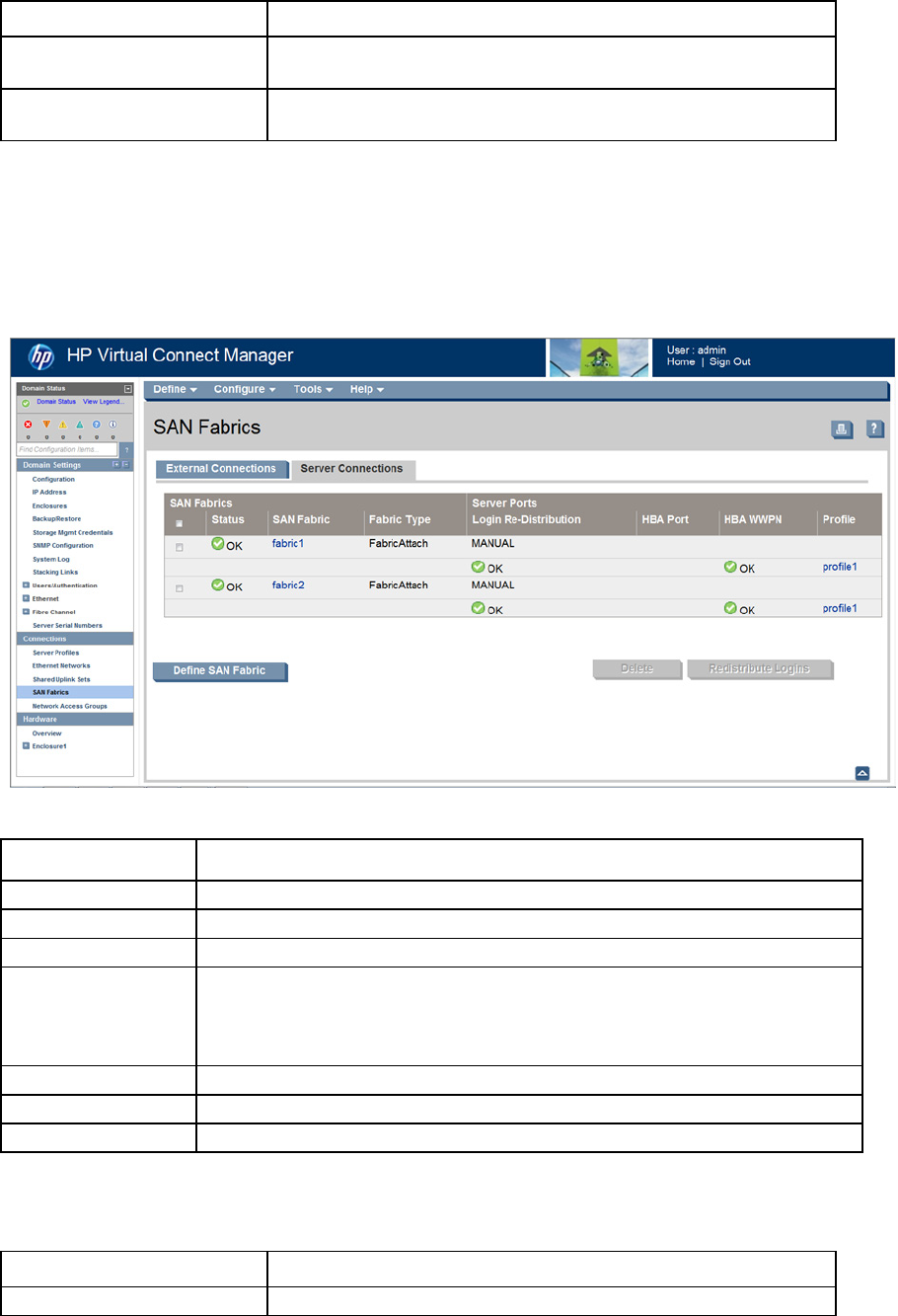

SAN Fabrics (Server Connections) screen
To access this screen, click SAN Fabrics in the left navigation tree, and then click the Server Connections tab.
This screen lists all of the SAN fabrics that have been created and displays the server connection information.
The following table describes the fields within the SAN Fabrics (Server Connections) screen.
Field Description
Status
Status of the fabric
SAN Fabric
Name of the fabric
Fabric Type
The type of fabric, FabricAttach or DirectAttach
Login Re-Distribution
Login Re-distribution setting for the fabric. For all standard VC-FC modules, this is
always Manual. For FlexFabric modules in a FabricAttach fabric, this can be set as
described in "Login re-distribution (on page 151)." The login re-distribution is not
applicable for FlexFabric modules in a DirectAttach fabric.
HBA Port
The status and number of the server port to which this fabric is connected
HBA WWPN
The HBA WWPN of the server port to which this fabric is connected
Profile
The profile that is using this fabric for a connection
The following table describes the available actions in the SAN Fabrics (Server Connections) screen. Clicking
another link in the pull-down menu or left navigation tree causes current edits that have not been applied to
be lost.
Task Action
Define a SAN fabric
Click Define SAN Fabric.
