b.

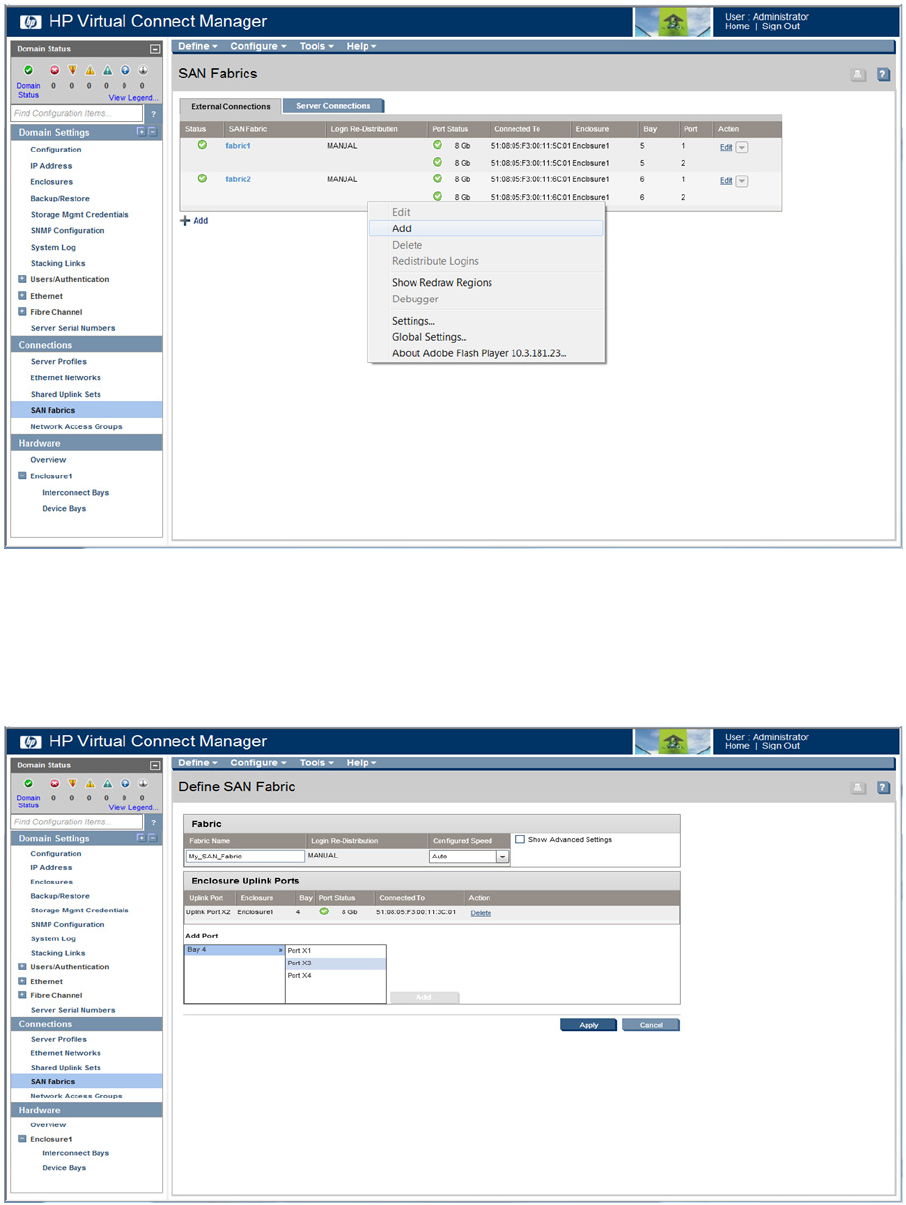

Right-click the heading row on the External Connections tab on the SAN Fabrics screen, and then
select Add, or click the Add button.
The Define SAN Fabric screen appears.
c. Enter a Fabric Name, and then select an available port of an available bay for the SAN fabric from
the Add Port pull-down list. Select one or more uplink ports for an HP VC FlexFabric 10Gb/24-port
Module.
d. Click Apply to save the changes.
