Virtual Connect modules 236

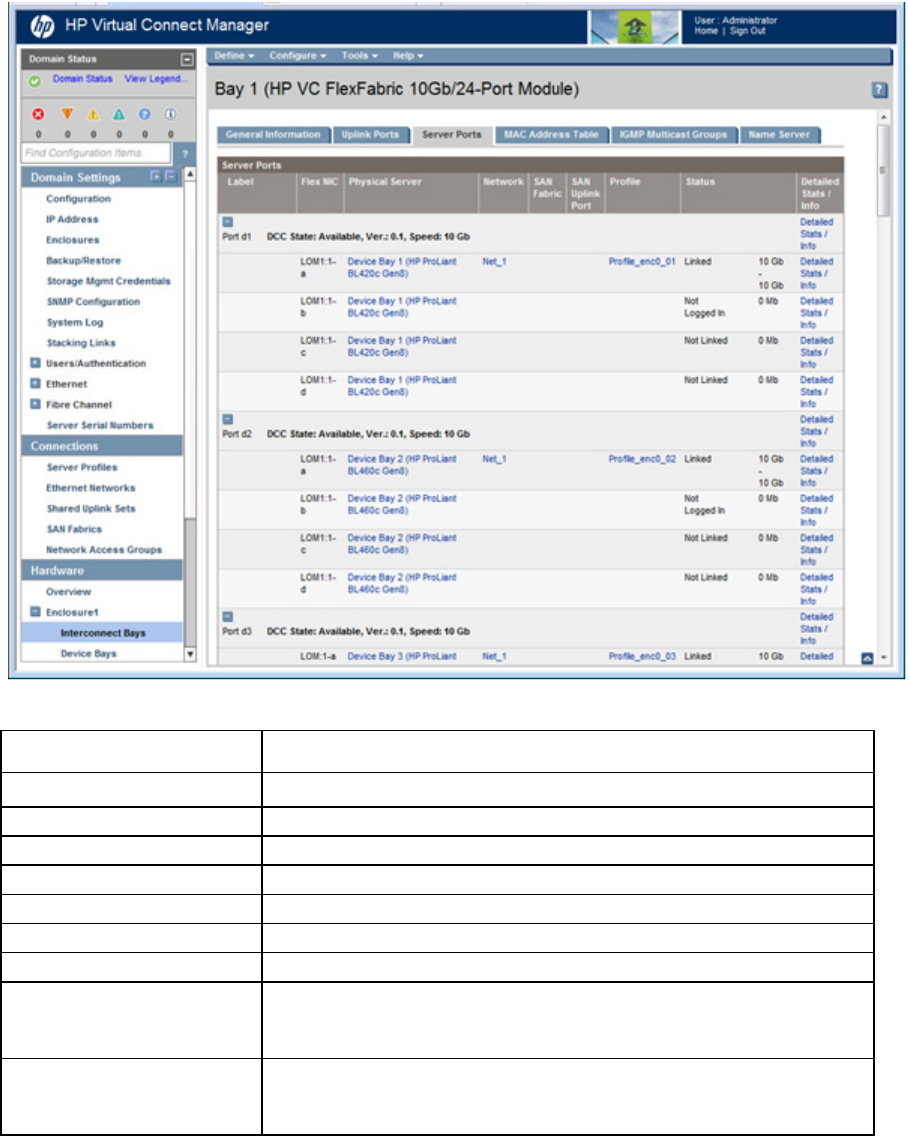

Ethernet Bay Summary (Server Port Information) screen
This screen provides a summary of the server port information. To remove a module, see "Interconnect
module removal and replacement (on page 265)."
The following table describes the columns within the Server Port Information table.
Column Description
Label
Server side port number (determined by the device bay and NIC)
Flex NIC
Flexible network interface card port
Physical Server
Number of the device bay and a description of the installed server blade
Network
Network name or the name of the shared uplink associated with this port
SAN Fabric
Name of the SAN fabric associated with this port
SAN Uplink Port
SAN uplink port associated with this server port
Profile
Name of the server blade profile
Status
Shows the link status, link speed, and connectivity of the port. If the port is
unlinked and no connectivity exists, the cause is displayed. For more
information about possible causes, see "Port status conditions (on page 264)."
Detailed Statistics ("Ethernet Port
Detailed Statistics screen" on
page 239)
Click to display detailed statistics about this port or subport
