Local users can test an LDAP configuration before applying it. For more information, see "Test LDAP
authentication (on page 70)."

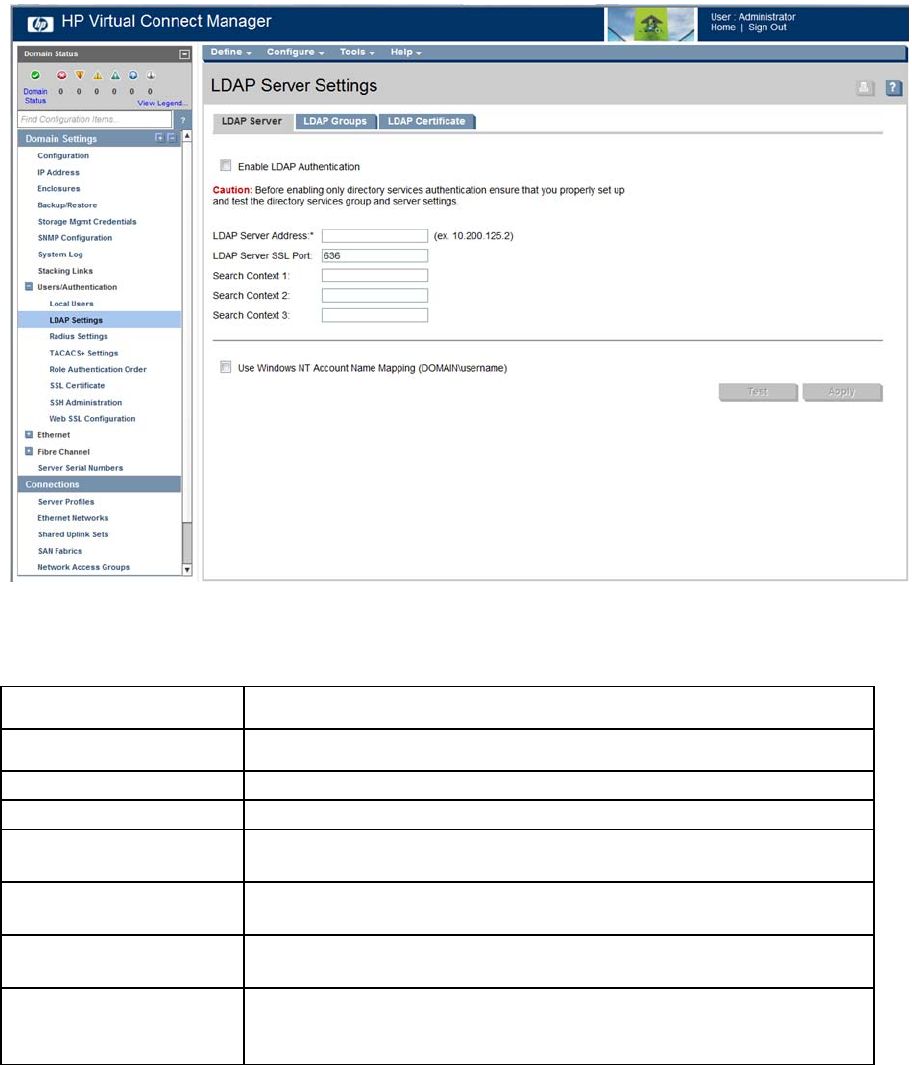

The following table describes the fields within the LDAP Server Settings (LDAP Server) screen. Clicking
another link in the pull-down menu or left navigation tree causes current edits that have not been applied to
be lost.
Field Description
Enable LDAP Authentication
Select to enable LDAP authentication.
LDAP Server Address
The IP address or the DNS name of the domain of the directory service
LDAP Server SSL Port
The port used for LDAP communications. The default port is port 636.
Search Context 1
First searchable path used to locate the user when you are trying to authenticate
using directory services
Search Context 2
Second searchable path used to locate the user when you are trying to
authenticate using directory services
Search Context 3
Third searchable path used to locate the user when you are trying to authenticate
using directory services
Use Windows NT Account
Name Mapping
(DOMAIN/Username)
Select to use NT account name mapping.
Test LDAP authentication
Local users can test their LDAP configuration before making the configuration active.
To test an LDAP configuration:
1. Be sure that LDAP group settings are configured.
