Virtual Connect networks 119
• Click a network on the Interconnect Bay Summary screen ("Ethernet Bay Summary (General
Information) screen" on page 233).
• Enter a network name in the Find Configuration Items search field in the left navigation tree, and then
select the network.

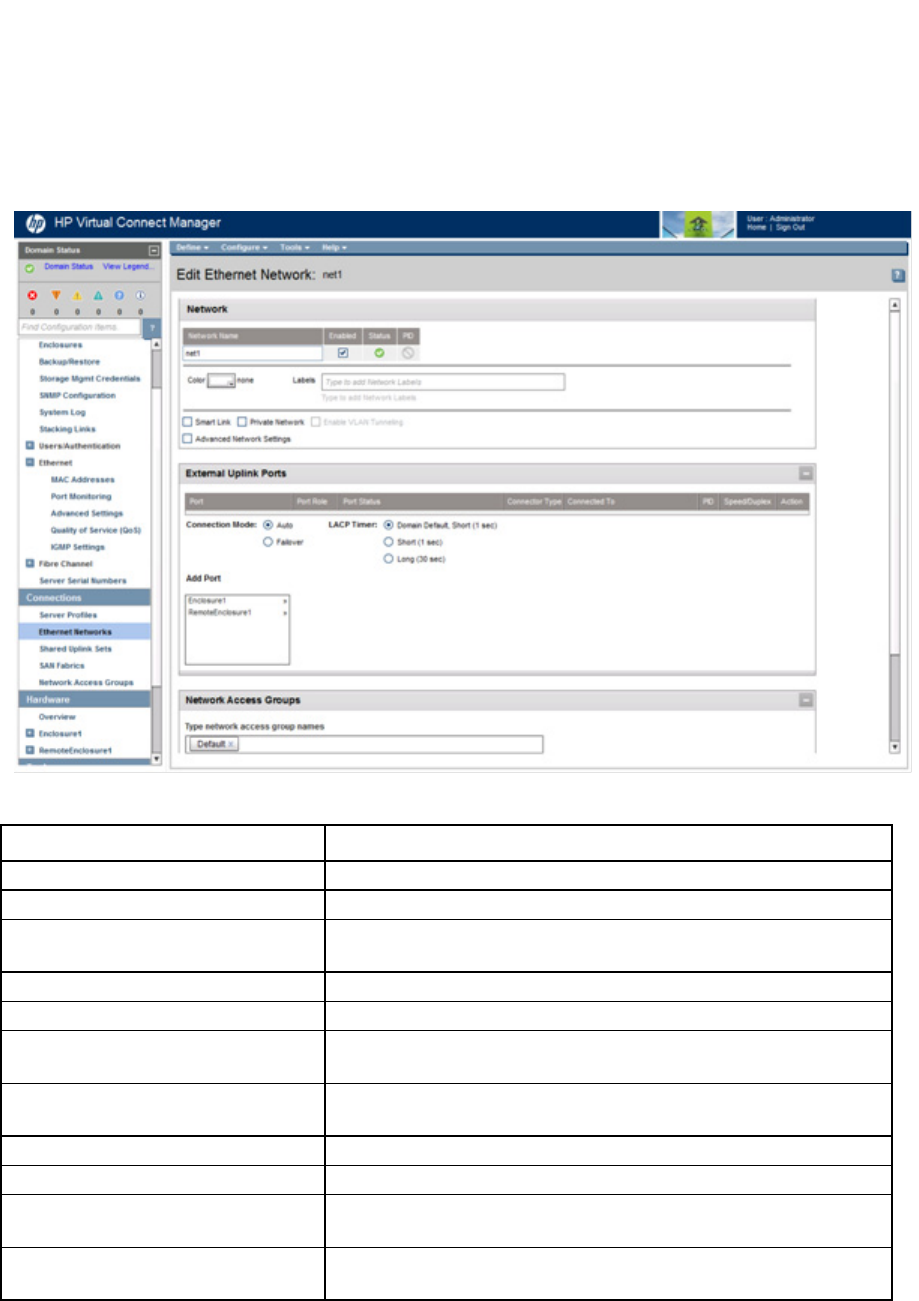

Use this screen to edit the properties of an existing network or to delete a network.
This screen has similar fields to the Define Ethernet Network screen (on page 114). This screen can only be
edited by users with network role permissions, but it is viewable by all authorized users.
The following table describes the fields within the Edit Ethernet Network screen.
Field name Description
Network
Network Name
Name of the network
Enabled
Displays the current state of the network as enabled (checked) or
disabled (unchecked)
Status
Displays the current status of the network
PID
Shows whether the PID is on or off for the port
Color
A network can have a user-selected color to group and identify the
network within VCM.
Labels
A network can have up to 16 user-defined labels to group and identify
the network within VCM.
Advanced Network Settings
If checked, displays additional selections for advanced network settings
Smart Link (on page 85)
Shows whether Smart Link is enabled (checked) or disabled (unchecked)
Private Network ("Private Networks" on
page 85)
Shows whether this network is designated (checked) or not designated
(unchecked) as a private network
Enable VLAN Tunneling ("VLAN
Tunneling Support" on page 85)
Shows whether VLAN tunneling is enabled (checked) or disabled
(unchecked)
