Virtual Connect server profiles 215
Unassigning a server profile with FCoE connections to an HP
ProLiant BL680c G7 Server Blade and deleting the SAN fabric
To unassign a server profile with FCoE connections from an HP ProLiant BL680c G7 Server Blade and delete
the SAN fabric:
1. Be sure that the HP ProLiant BL680c G7 Server Blade is powered down:

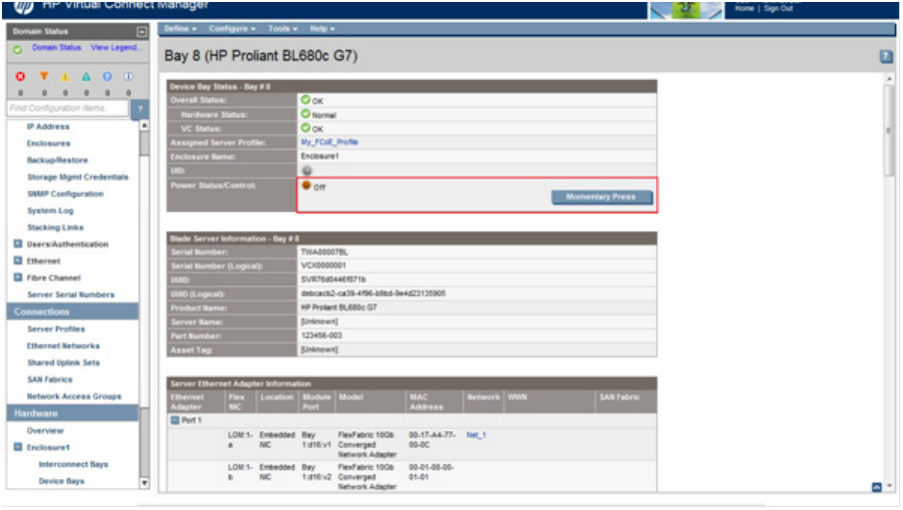

a. Click the HP ProLiant BL680c G7 Server Blade device bay in the Device Bays link in the Hardware
section in the left navigation tree. The Server Bay Status screen appears.
b. Be sure that the Power Status/Control status value is Off. If the status is On, click Momentary Press
to power down the server blade.
2. Unassign the server profile:
a. Click the Server Profiles link in the left navigation tree, find the profile with the FCoE connections,
and then click Edit, or type the name of the profile in the Find Configuration Items box at the top of
the left navigation tree, and then select the profile from the list. The Edit Server Profile screen
appears.
b. In the Assign Profile to Server Bay section, select Unassigned from the Server pull-down list.
