Virtual Connect modules 233
• FC modules in multi-enclosure double dense domains
When using VC-FC modules, multi-enclosure double dense domains require similar and compatible
VC-FC modules in bays 5, 6, 7, and 8 in all enclosures. If a multi-enclosure double dense configuration
contains incompatible VC-FC modules in bays 5, 6, 7, or 8 in either the local or remote enclosures,
some or all of the compatible VC-FC modules in the remote enclosures might be designated
INCOMPATIBLE after import.
Corrective action:
a. Replace incompatible VC-FC modules with similar and compatible VC-FC modules in bays 5, 6, 7,
and 8 in all enclosures.
b. Power cycle any VC-FC module that still remains in an INCOMPATIBLE state.

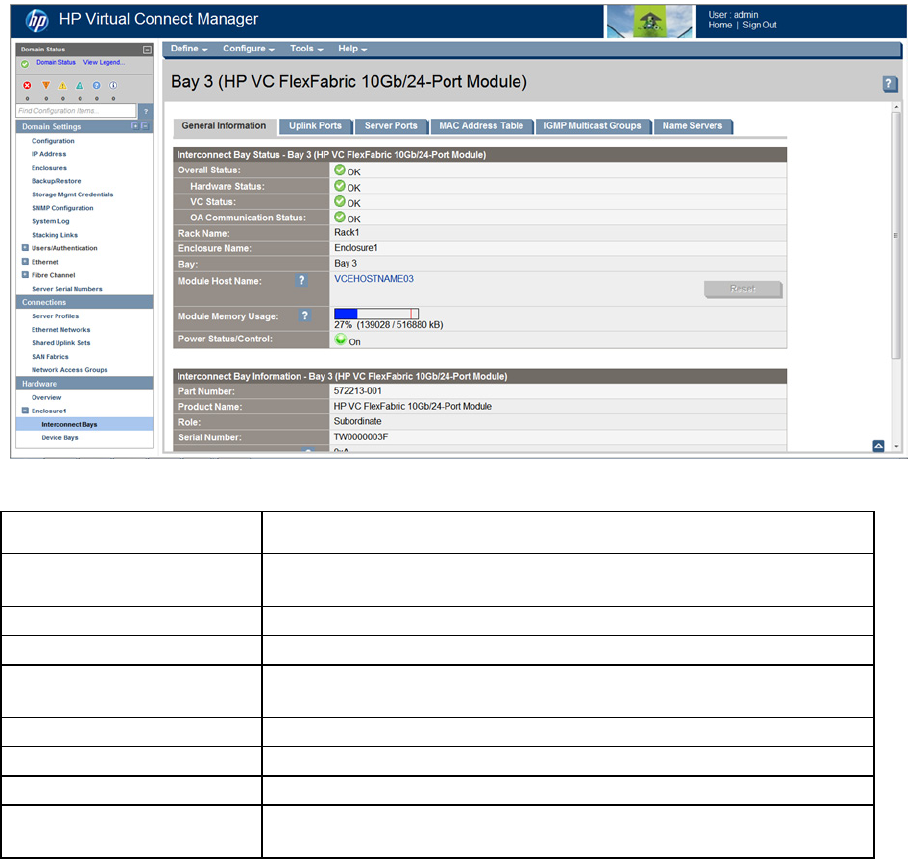

Ethernet Bay Summary (General Information) screen
This screen provides a summary of the interconnect module status and general information. To remove a
module, see "Interconnect module removal and replacement (on page 265)."
The following table describes the rows within the Interconnect Bay Status table.
Row Description
Overall Status
Represents the worst condition of OA Reported Status, VC Status, and OA
Communication Status
Hardware Status
Component health status from the Onboard Administrator
VC Status
Component health status from the Virtual Connect Manager
OA Communication Status
Current Virtual Connect Manager to Onboard Administrator communication
state
Rack Name
Name of the enclosure rack (assigned through the Onboard Administrator)
Enclosure Name
Name of the enclosure (assigned through the Onboard Administrator)
Bay
Number of the bay being summarized on this screen
Module Host Name
Includes controls that enable you to set a custom host name for the module and
reset the module
