Virtual Connect domains 51

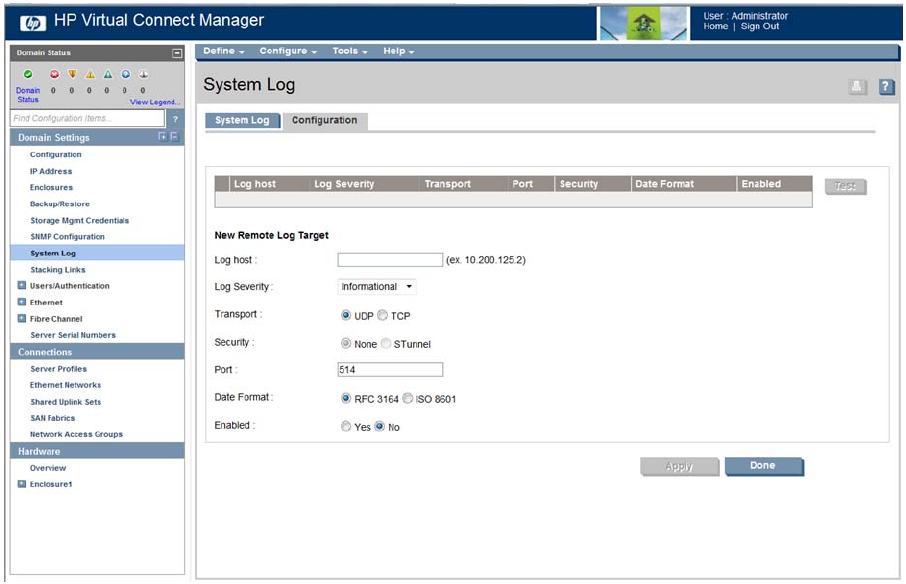

To delete a remote log destination, select the checkbox next the preferred destination, and then click Delete.
Managing SSL configuration
Use the following screens to manage the domain SSL configuration:
• SSL Certificate Administration (Certificate Info) screen (on page 51)
o View current certificate information
• SSL Certificate Administration (Certificate Signing Request) screen (on page 54)
o Generate a certificate request
• SSL Certificate Administration (Certificate Upload) screen (on page 56)
o Upload a signed certificate
• SSH Key Administration screen (on page 57)
o View current users of each authorized SSH key
o Add new SSH keys
• Web SSL Configuration screen (on page 58)
o Change currently configured SSL encryption strength
SSL Certificate Administration (Certificate Info) screen
This screen displays the detailed information of the Secure Socket Layer certificate currently in use by VCM.
An SSL certificate is used to certify the identity of the VCM and is required by the underlying HTTP server to
establish a secure (encrypted) communications channel with the client web browser.
